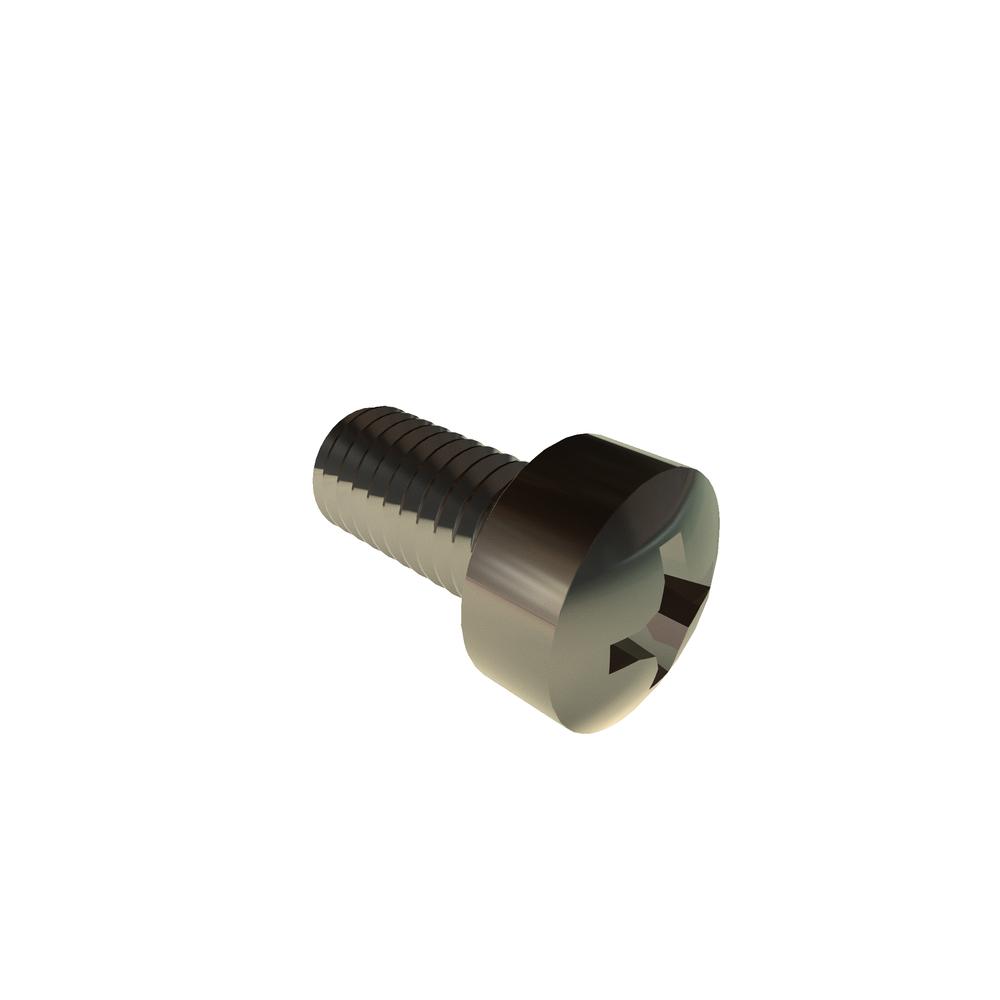

Image for reference purposes only. Actual product may vary.
10F37PFIS
10-32 X 3/8 PHIL FILL SST RoHS
Alternate Codes: 91737A205
10-32 X 3/8 Phillips Fillister Head Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.453 | $0.239 | $0.189 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.37in |
| Thread Size | 10-32 |
| Thread Size | Oct-32 |
| Finish | Plain |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Fillister |
| Drive Size | #2 |
| Recess Diameter | 0.192in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Head Side Height (Min.) | 0.118in |
| Head Side Height (Max.) | 0.130in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91737A205 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.313in |
| Head Diameter (Min.) | 0.292in |
| Head Height (Max.) | 0.180in |
| Head Height (Min.) | 0.156in |
