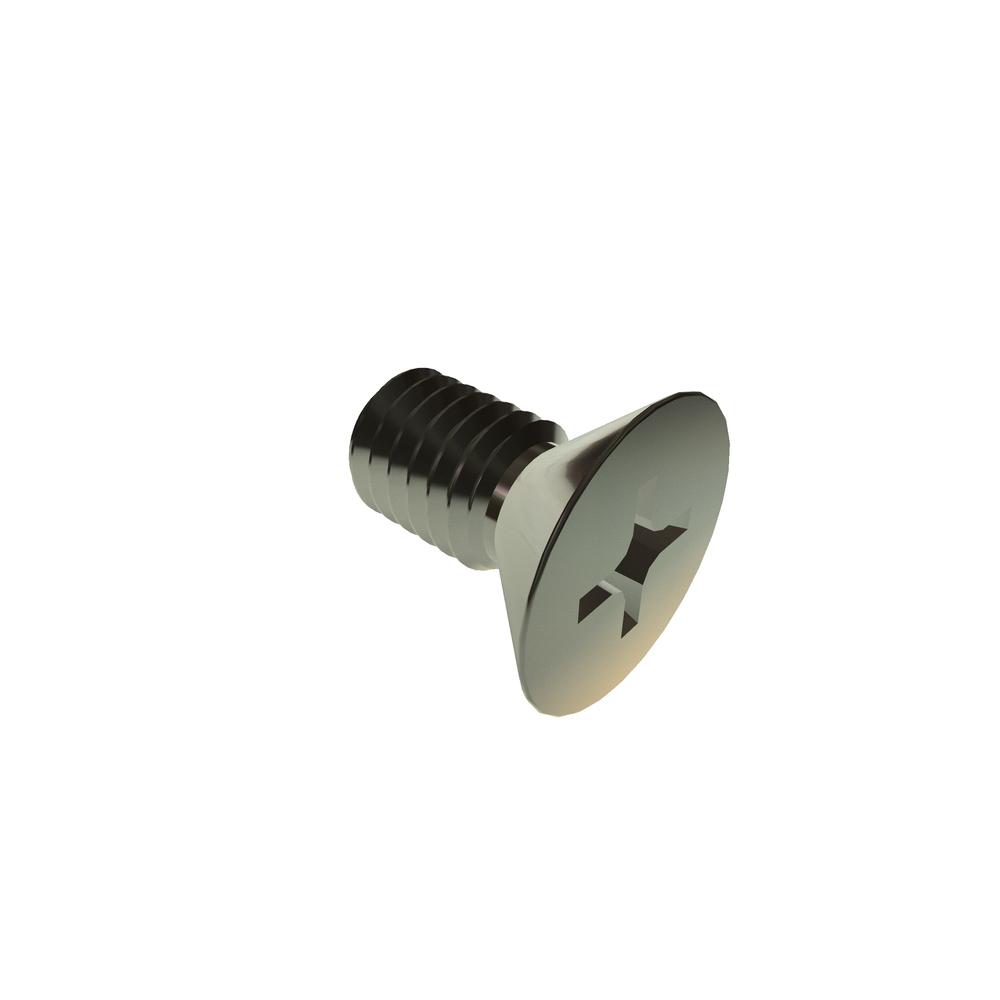

Image for reference purposes only. Actual product may vary.
10F37PFMS/P
10-32 X 3/8 PHIL FLAT PATCH SST RoHS
Alternate Codes: N/A
10-32 X 3/8 Phillips FLAT Head PATCH Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 3/8in |
| Thread Size | 10-32 |
| Finish | Plain |
| Drive Type | Phillips |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 0.198in |
| Head Height | 0.116in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.125in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
