10F37PFMZB

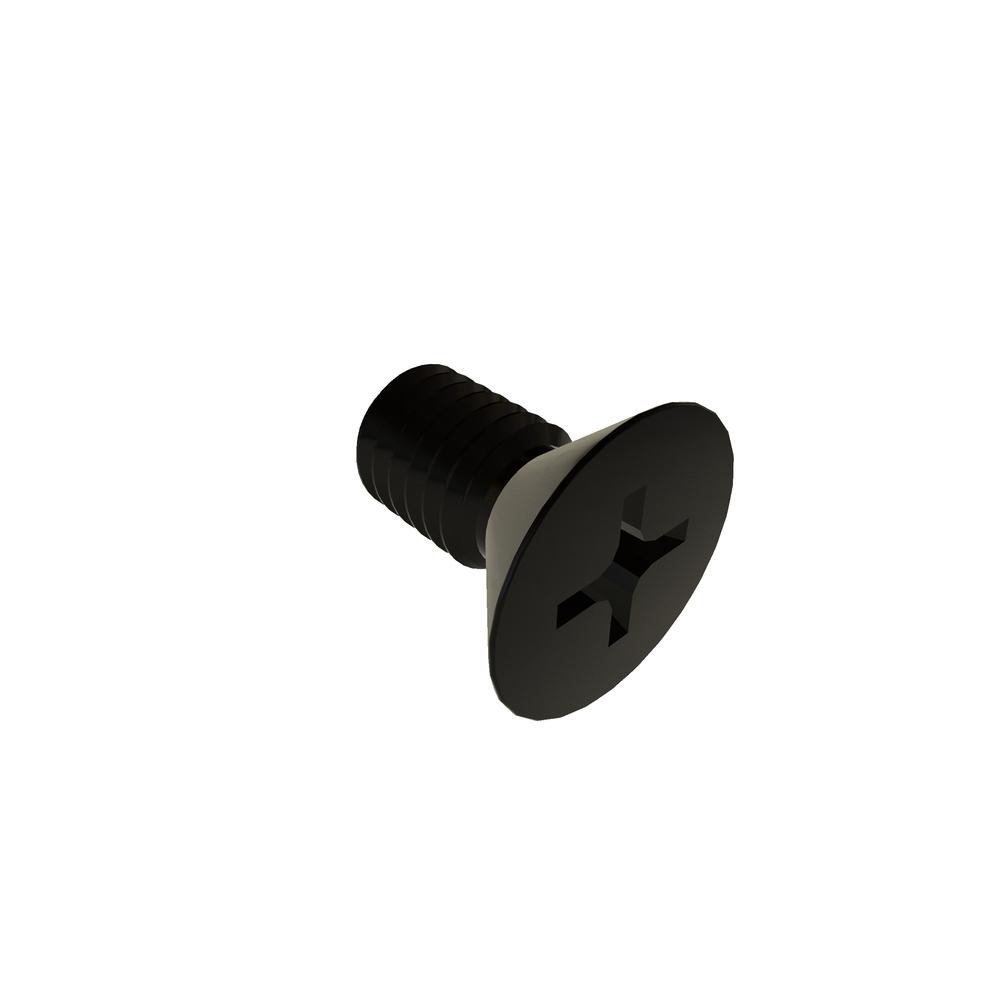

10-32 X 3/8 PHIL FLAT STL BLK RoHS
Alternate Codes: 051829
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|
| $0.146 | $0.088 | $0.073 | $0.060 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.198in |
| Head Height | 0.116in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.125in |
| Brand | VARIED |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
