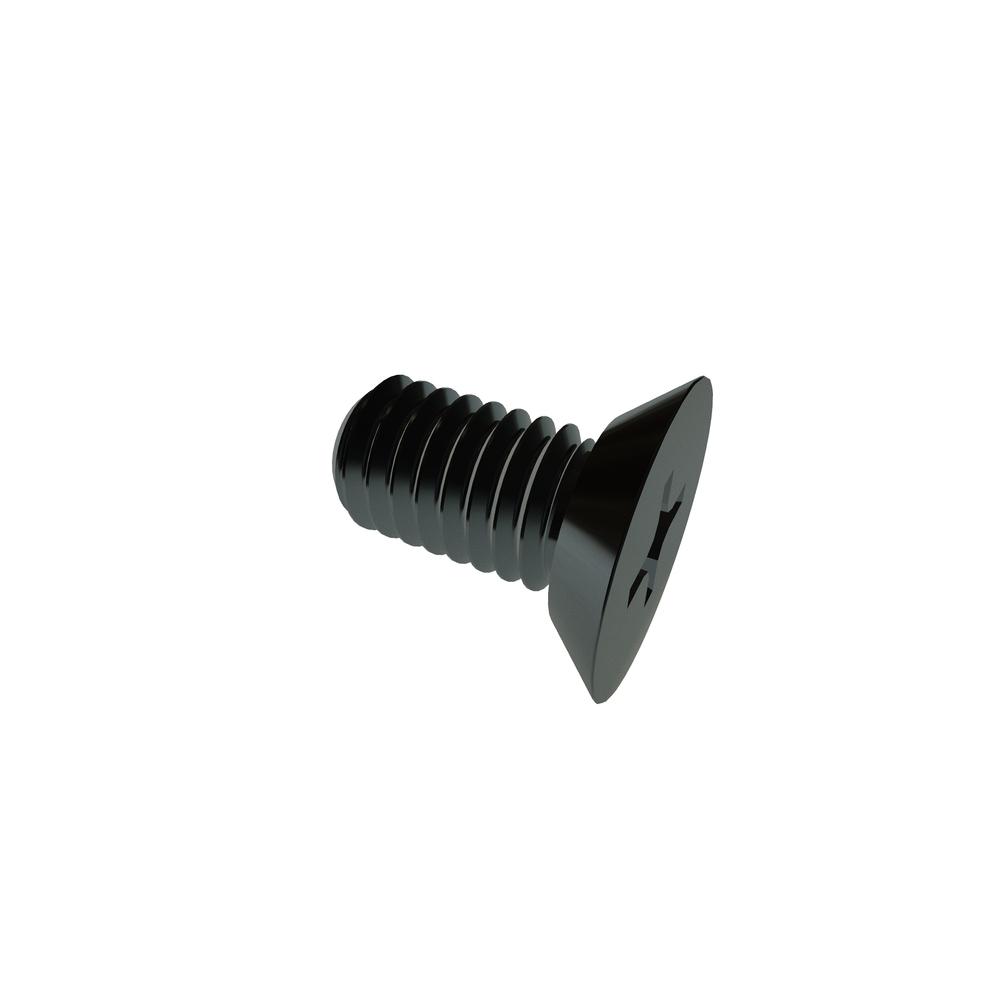

10F37PFUZR
10-32 X 3/8 PHIL FLAT U/C STL ZN CR3
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.296 | $0.156 | $0.123 | $0.114 | $0.095 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.182in |
| Recess Depth (Min.) | 0.087in |
| Recess Depth (Max.) | 0.110in |
| Brand | VARIED |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Head Height (Max.) | 0.081in |
| Head Height (Min.) | 0.068in |
