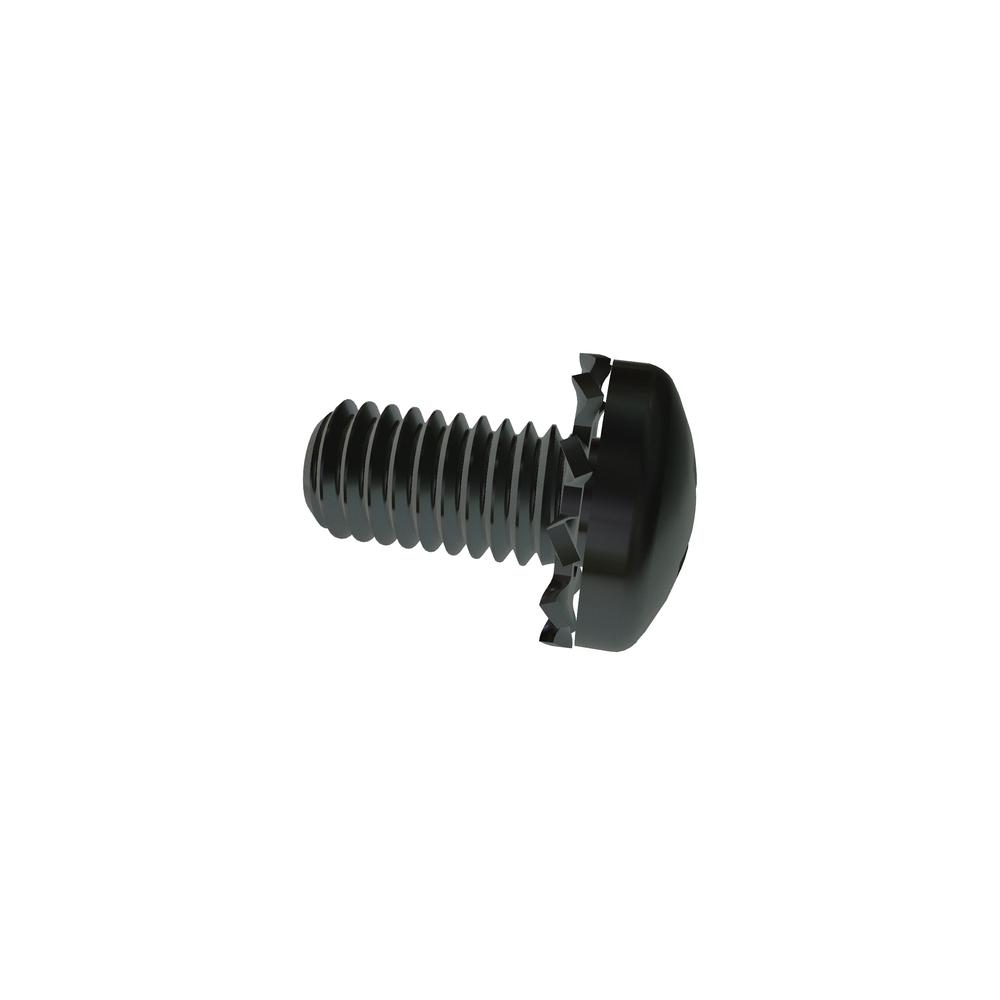

Image for reference purposes only. Actual product may vary.
10F37PPEZR
10-32 X 3/8 PHIL PAN EXT SEMS STL ZN CR3
Alternate Codes: 063039-001, 10F37PPEZt, 232-0033-06, 700015
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.220 | $0.116 | $0.092 | $0.085 | $0.071 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 3/8in |
| Thread Size | 10-32 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 0.192in |
| Washer Type | External Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.024in |
| Lock Washer Outside Diameter (Min.) | 0.365in |
| Lock Washer Outside Diameter (Max.) | 0.381in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Head Radius (Min.) | 0.020in |
| Additional Industry Cross Reference | 90402A827 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Lock Washer Thickness (Min.) | 0.018in |
