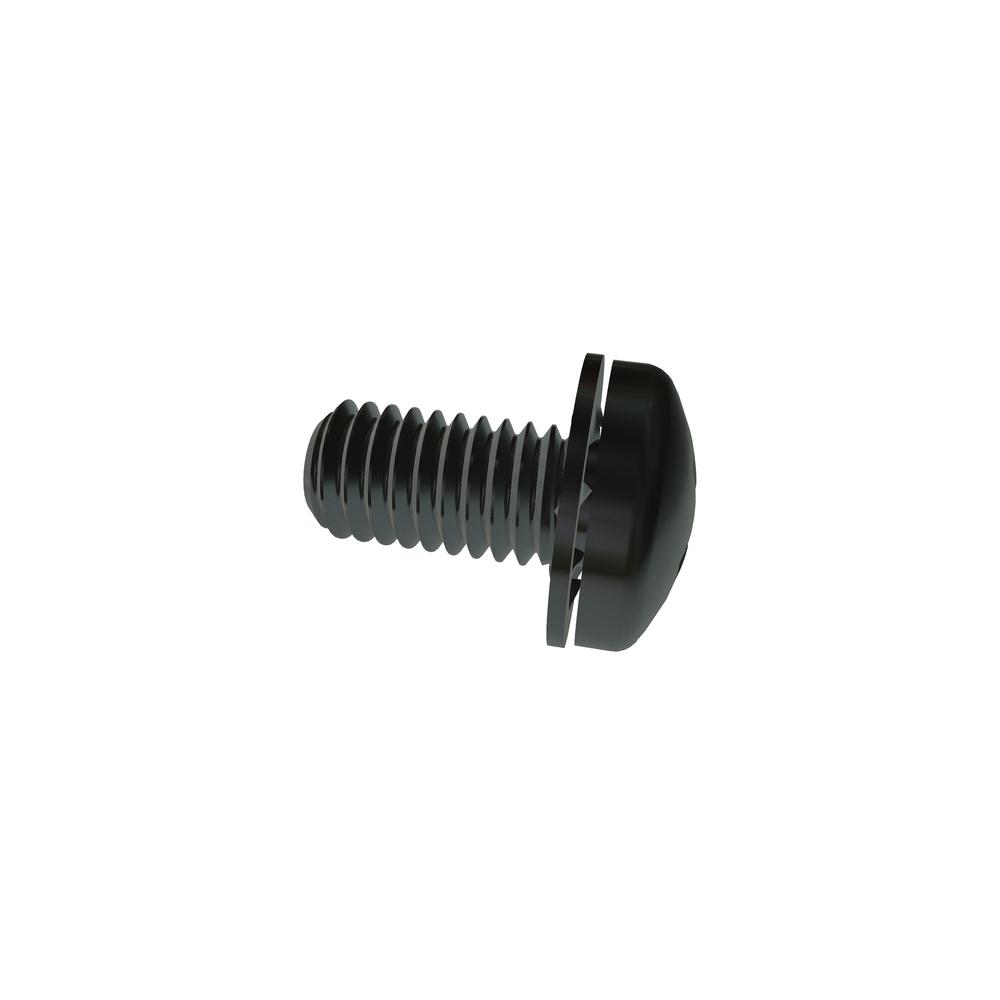

10F37PPIZR
10-32 X 3/8 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: 50533-03
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.208 | $0.109 | $0.087 | $0.080 | $0.067 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.024in |
| Lock Washer Outside Diameter (Min.) | 0.372in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90403A827 |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Lock Washer Thickness (Min.) | 0.018in |
