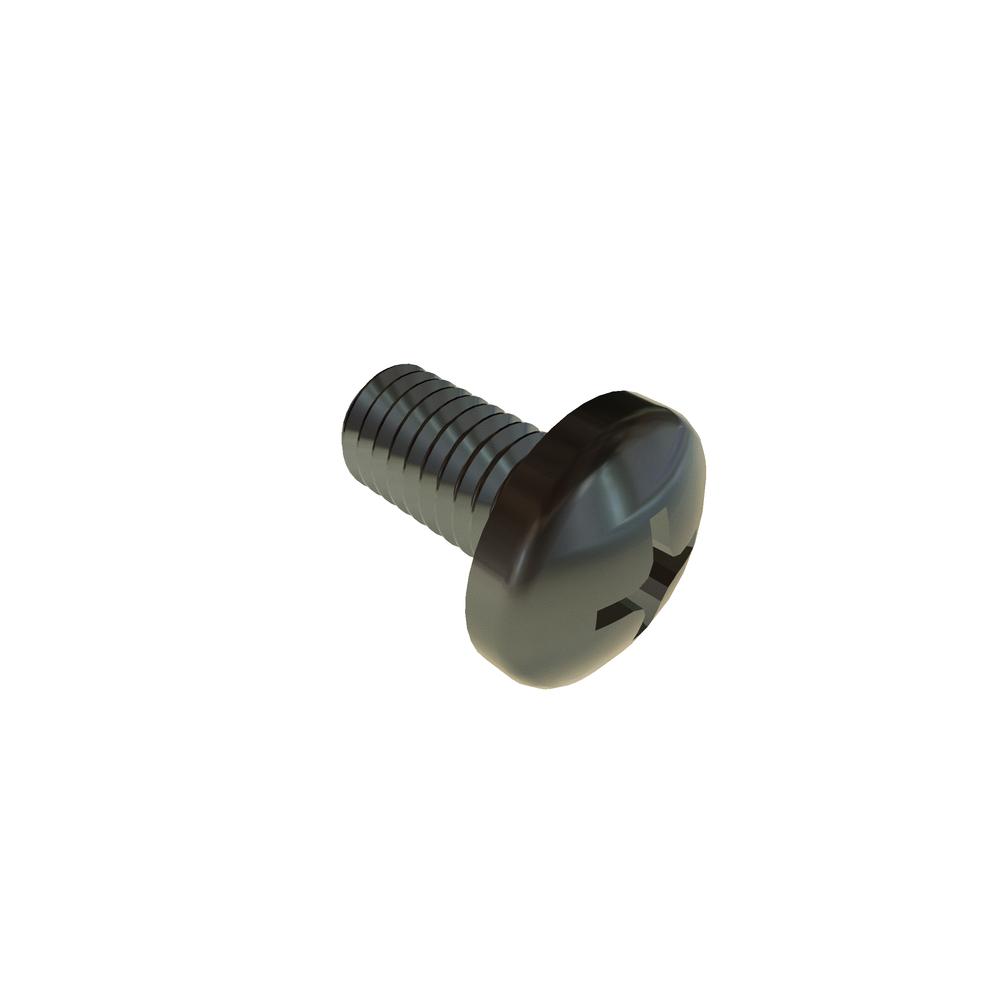

10F37PPMBN
10-32 X 3/8 PH PAN BR NI
Alternate Codes: 20-00237-00
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.322 | $0.841 | $0.772 | $0.712 | $0.601 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Brass |
| Finish | Nickel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Brand | VARIED |
| Length | 0.37in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
