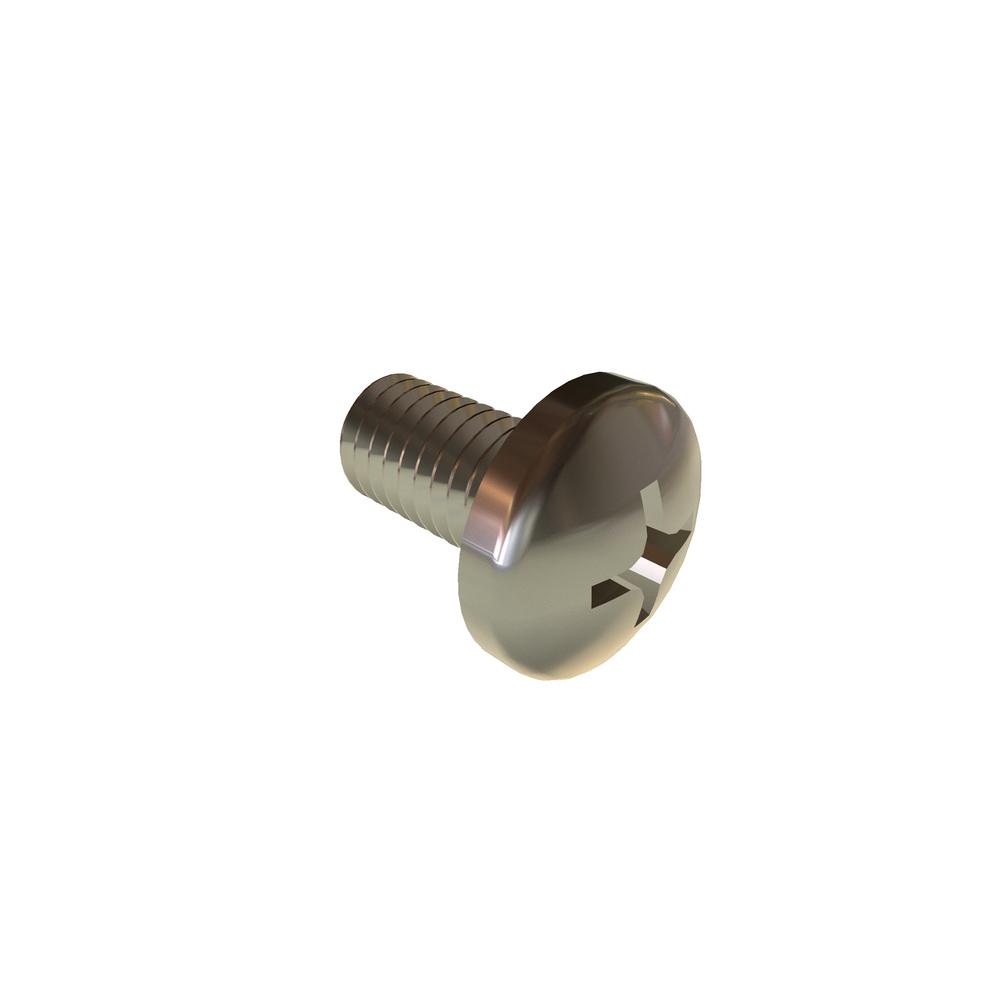

10-32 X 3/8 PH PAN SST RoHS
10F37PPMS
| Item Id | 10F37PPMS |
| Description | 10-32 X 3/8 PHIL PAN SST RoHS |
| Alternate Codes | 003717, 050178, 100-03-579, 16156, 25-0020-06, 2600196-03, 41737, 477-0055, 490-0086, 581919-06, 581948-05, 902090-0006, P0500 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A827 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Head Radius (Min.) | 0.020in |
| Head Type | Pan |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.113in |
| Recess Depth (Min.) | 0.089in |
| Recess Diameter | 0.192in |
| RoHS | Compliant |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
