10F37PPQSB

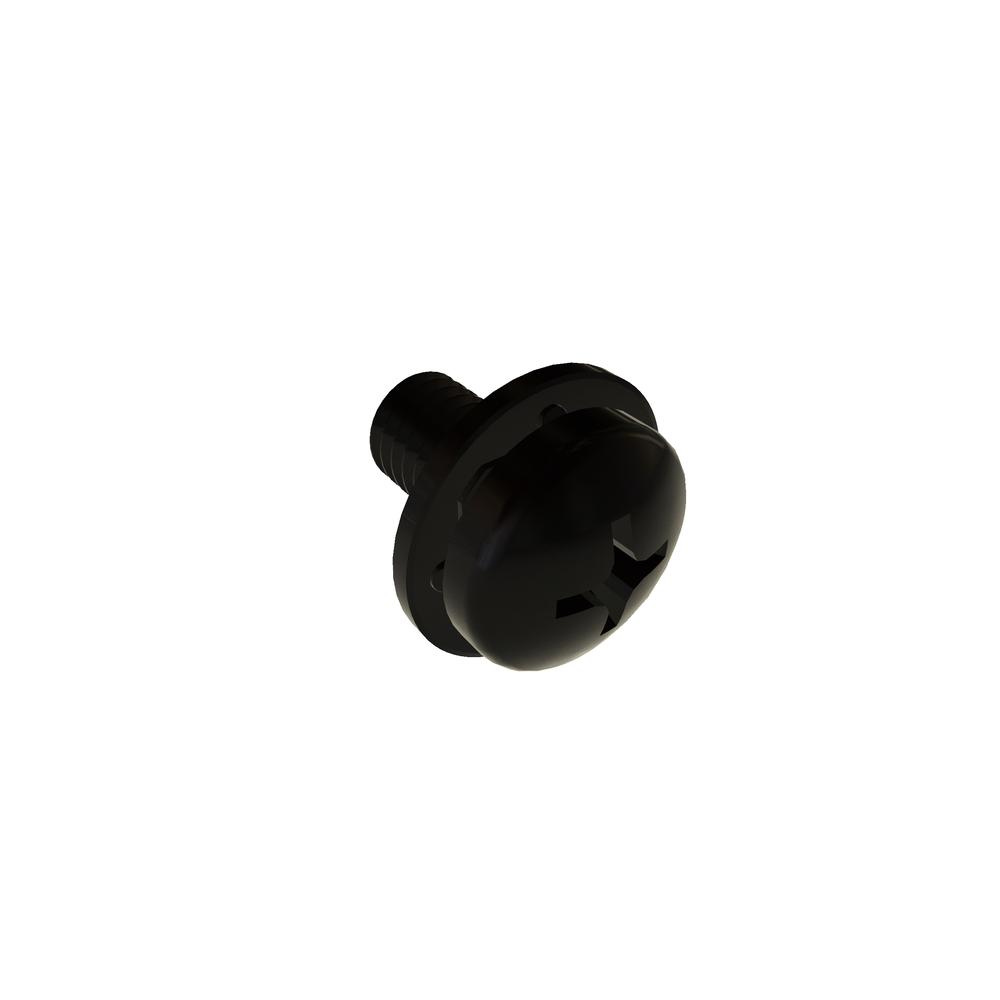

10-32 X 3/8 PH PAN SQ CONE SEMS SST
Alternate Codes: N/A
BLACK RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.865 | $0.476 | $0.396 | $0.340 | $0.280 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Height (Min.) | 0.051in |
| Lock Washer Height (Max.) | 0.075in |
| Lock Washer Outside Diameter (Min.) | 0.433in |
| Lock Washer Outside Diameter (Max.) | 0.446in |
| Washer Type | Square Cone Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Brand | VARIED |
| Length | 3/8in |
| Lock Washer Thickness (Min.) | 0.032in |
