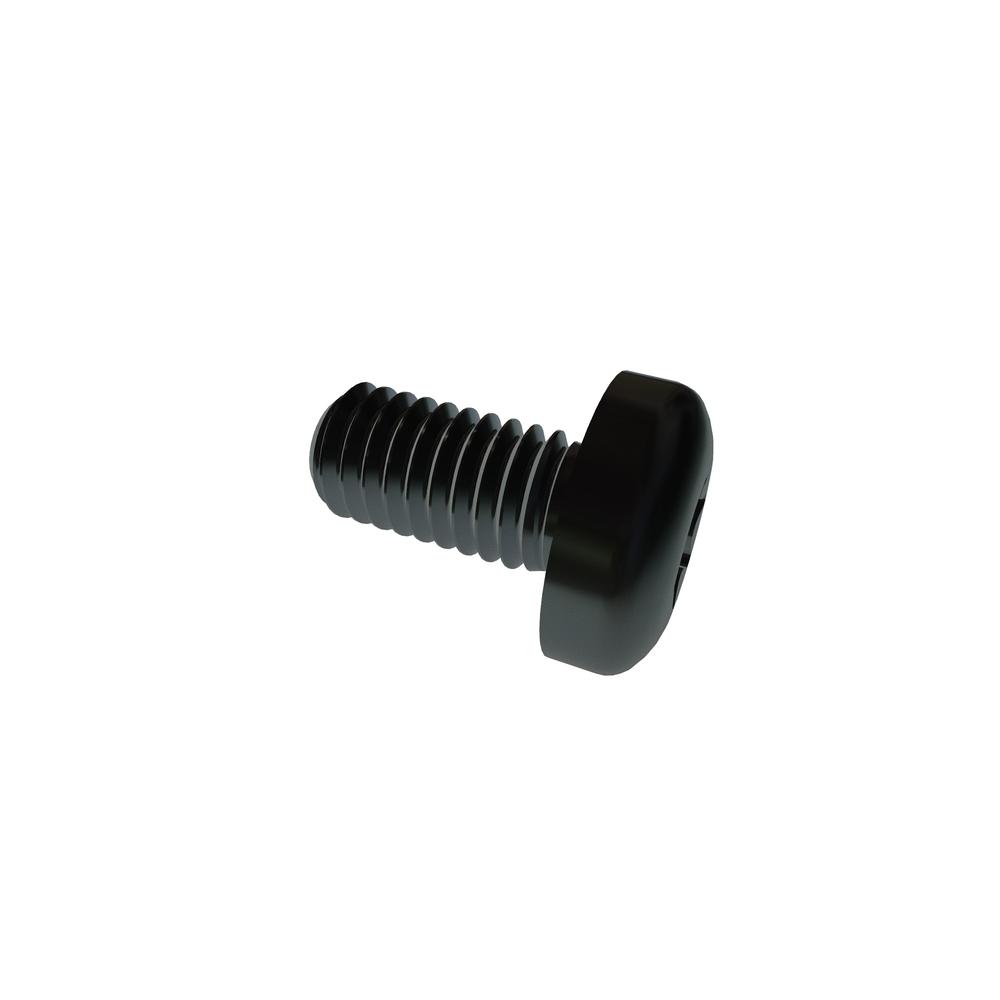

Image for reference purposes only. Actual product may vary.
10F37XPMZR
10-32 X 3/8 TORX PAN STL ZN CR3
Alternate Codes: 90022A264
10-32 X 3/8 TORX Pan Head Steel Zinc Plated RoHS3
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|---|
| $1.584 | $1.219 | $0.990 | $0.881 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.37in |
| Thread Size | 10-32 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Torx |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Size | T25 |
| Recess Diameter | 0.173in |
| Head Radius (Min.) | 0.020in |
| Recess Depth (Min.) | 0.070in |
| Recess Depth (Max.) | 0.085in |
| Additional Industry Cross Reference | 90022A264 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
