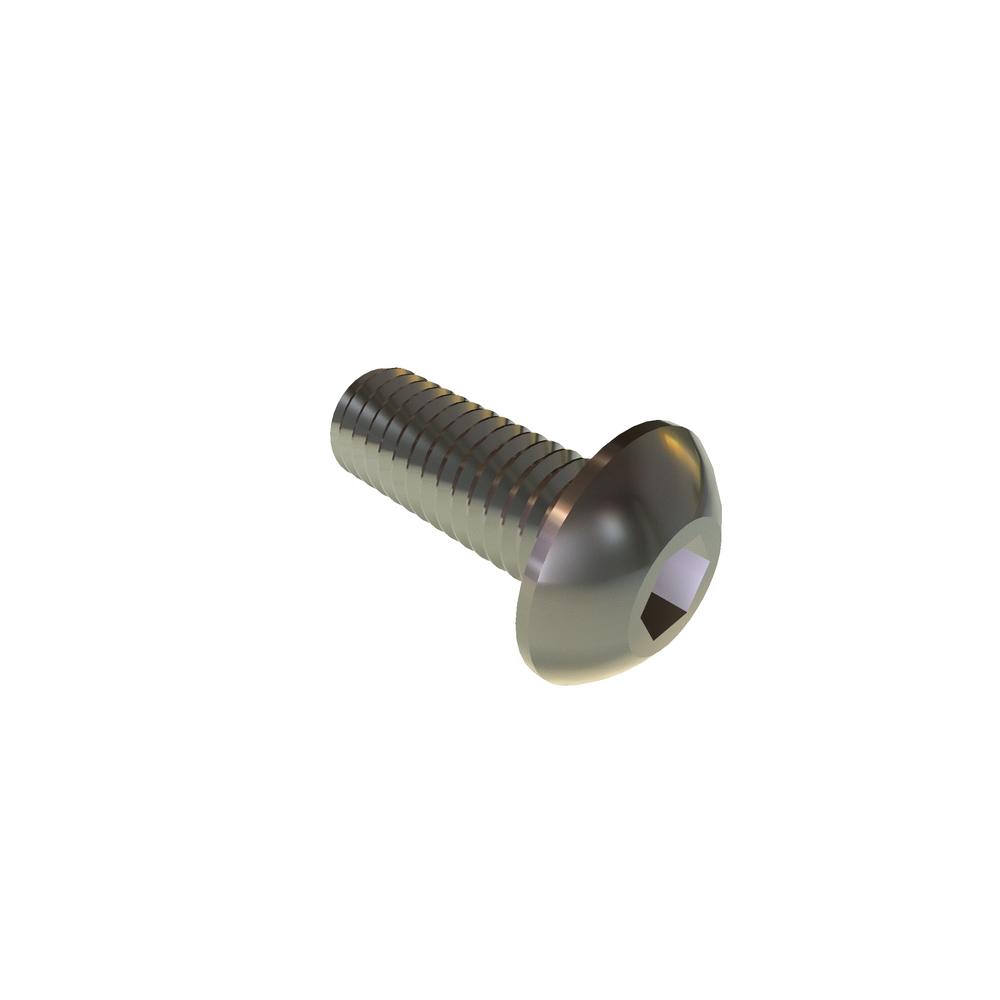

Image for reference purposes only. Actual product may vary.
10F50BHCSB/P
8-32 X 1/2 BUT SOC PATCH SST RoHS BLK
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.608 | $0.387 | $0.355 | $0.327 | $0.276 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.5000in |
| Thread Size | 10-32 |
| Finish | Black Oxide |
| Drive Type | Hex Socket |
| Head Type | Button |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Fillet Transition Diameter (Min.) | 0.210in |
| Fillet Transition Diameter (Max.) | 0.220in |
| Head Side Height (Ref.) | 0.020in |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Key Engagement (Min.) | 0.070in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.361in |
| Head Diameter (Min.) | 0.347in |
| Head Height (Max.) | 0.101in |
| Head Height (Min.) | 0.091in |
| Hex Socket Size | 0.125in |
