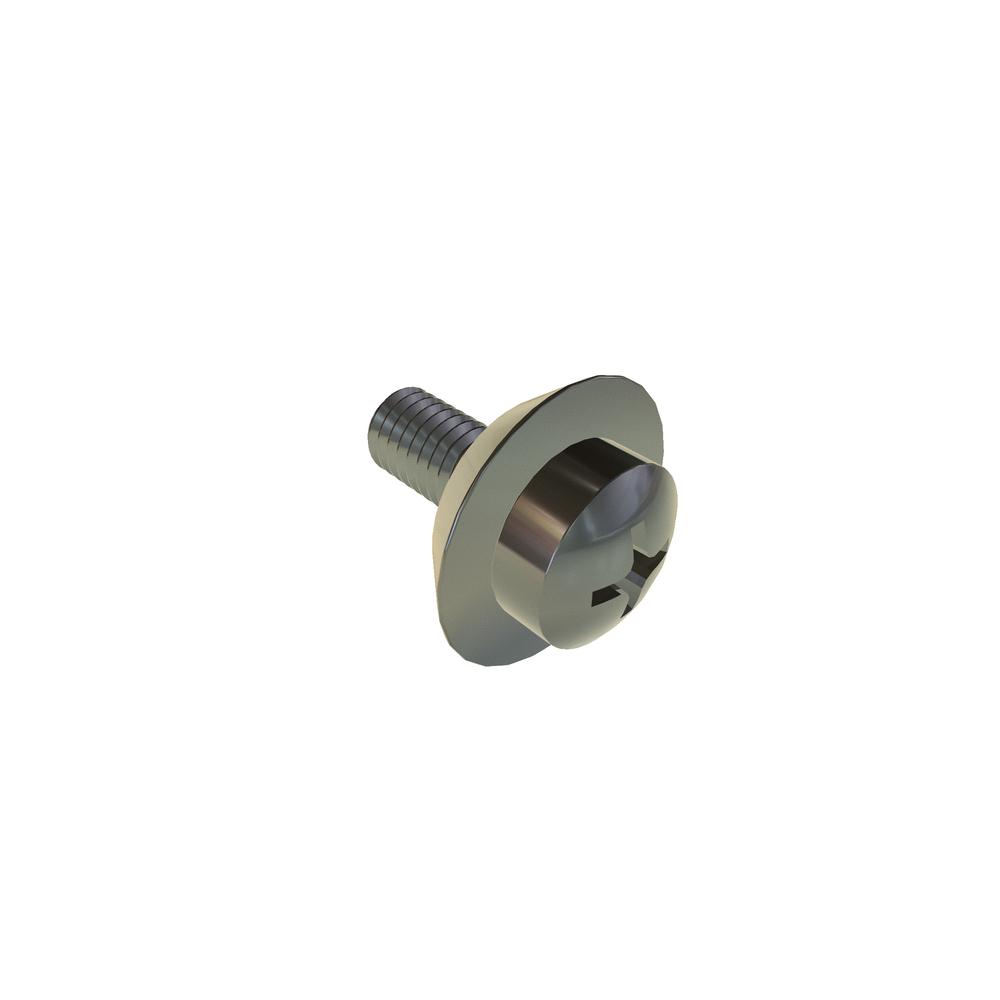

10F50PCWZN
10-32 X 1/2 PHIL CUP WASH STL NI
Alternate Codes: 40339
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.507 | $0.279 | $0.232 | $0.199 | $0.164 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Nickel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Cup Washer |
| Drive Type | Phillips |
| Recess Diameter | 0.202in |
| Head Height | 0.176in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.126in |
| Head Side Height | 0.116in |
| Brand | VARIED |
| Length | 0.50in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Crown Height | 0.060in |
| Washer Inner Diameter | 0.235in |
| Washer Outer Diameter | 0.594in |
| Washer Height | 0.122in |
