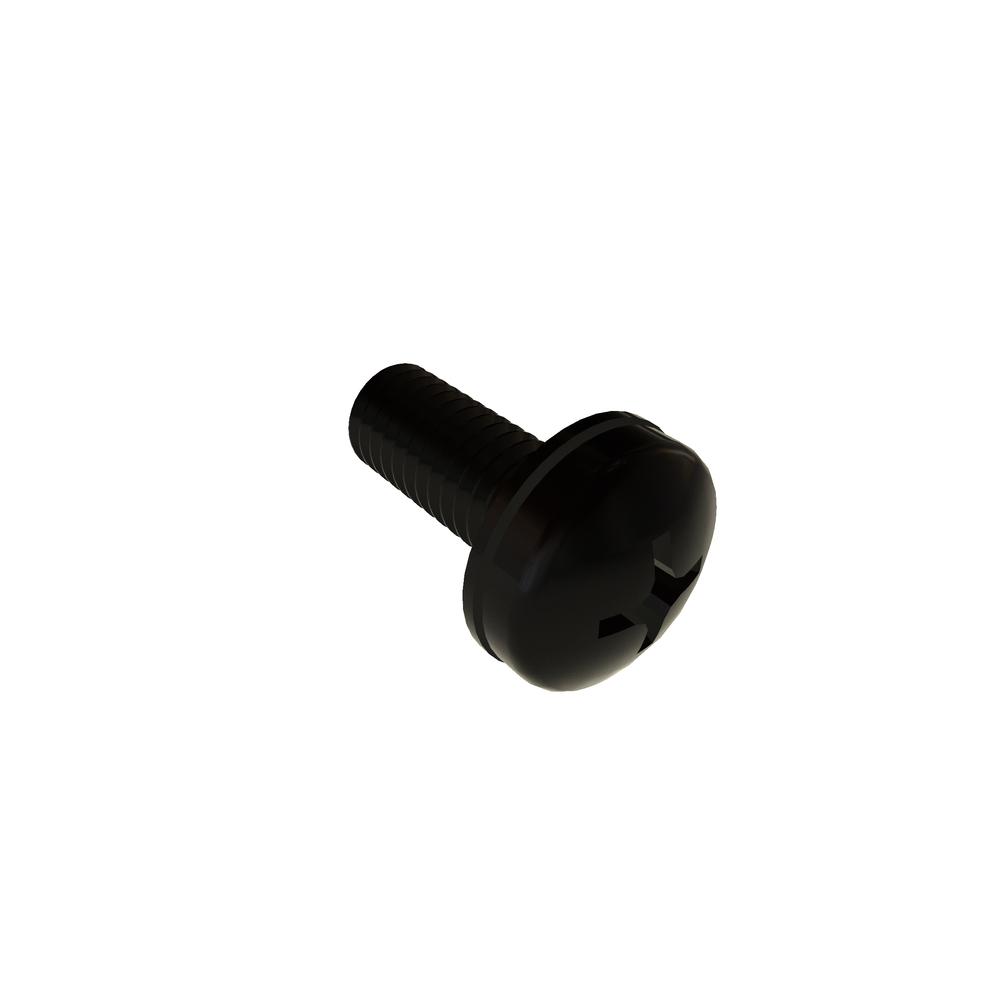

10F50PPIZB
10-32 X 1/2 PHIL PAN INT SEMS STL BLK
Alternate Codes: 23617
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.395 | $0.208 | $0.165 | $0.152 | $0.127 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.024in |
| Lock Washer Outside Diameter (Min.) | 0.372in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Brand | VARIED |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Lock Washer Thickness (Min.) | 0.018in |
