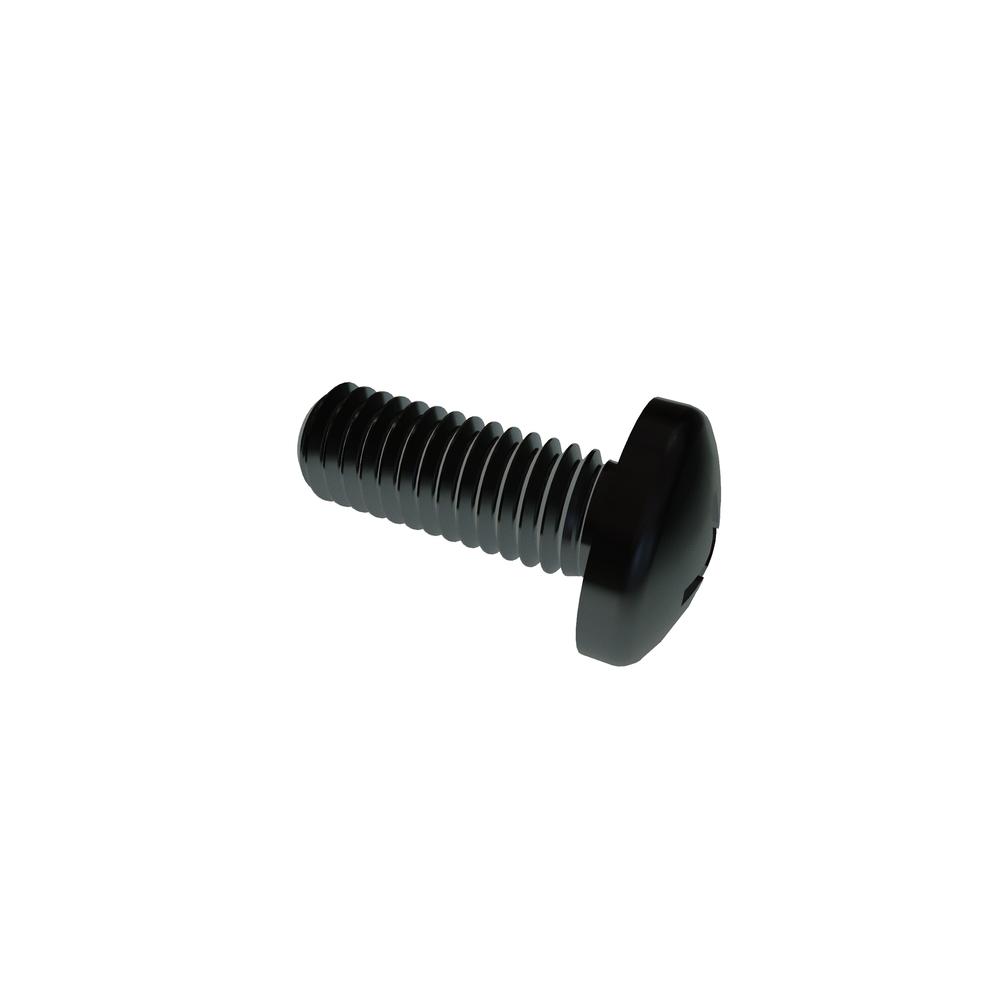

10-32 X 1/2 PH PAN STL ZN CR3
10F50PPMZR
| Item Id | 10F50PPMZR |
| Description | 10-32 X 1/2 PHIL PAN STL ZN RoHS |
| Alternate Codes | 010799, 0179, 031G152410, 10F50PPMZt, 174-0004-00, 1901-0005, 232-0009-02, 4300807-09, 5305-51900, 60-0019-001, 7011-1132-16, 72102050, 73-H125-00, 780-00116, 90272A829, P2546 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90272A829 90272A829 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Clear |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Head Radius (Min.) | 0.020in |
| Head Type | Pan |
| Length | 0.50in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.113in |
| Recess Depth (Min.) | 0.089in |
| Recess Diameter | 0.192in |
| RoHS | Compliant |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
