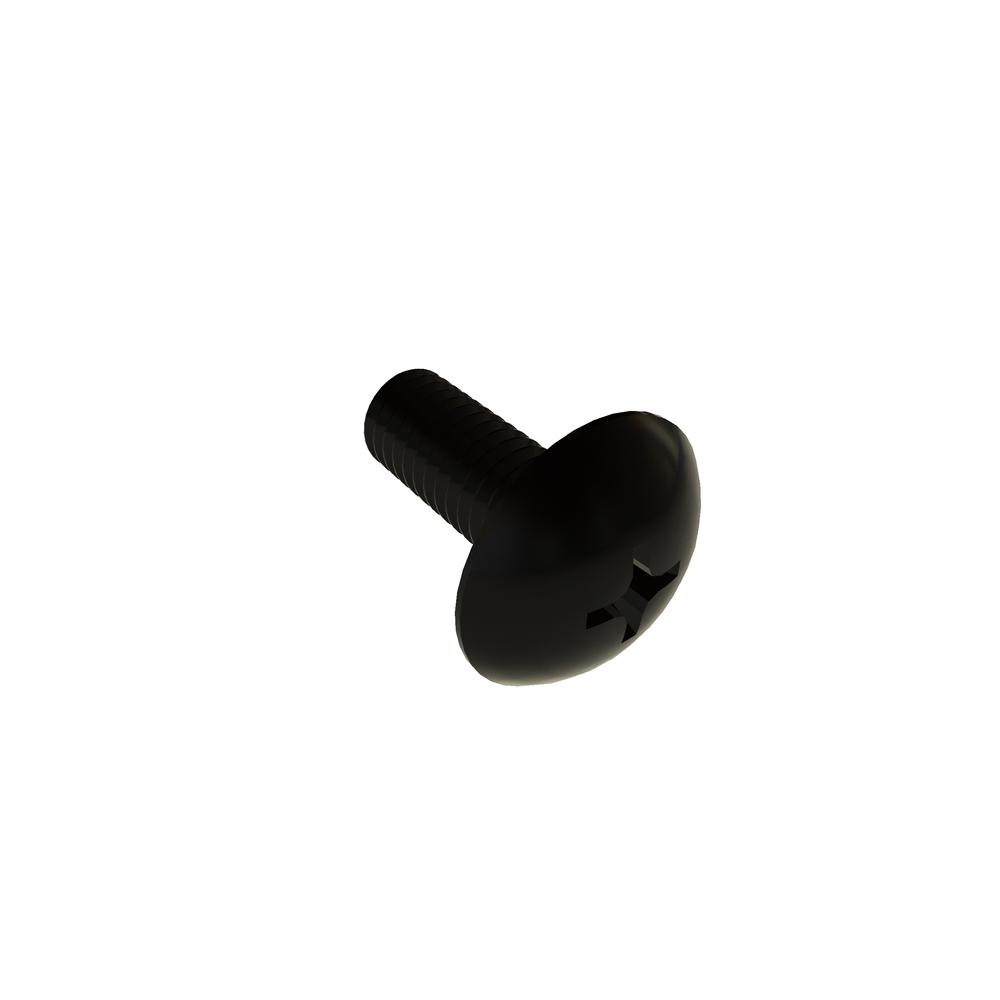

10F50PTMSB
10-32 X 1/2 PHIL TRUSS SST RoHS BLK
Alternate Codes: 94779A750
RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.842 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.181in |
| Head Radius (Min.) | 0.283in |
| Recess Depth (Min.) | 0.079in |
| Recess Depth (Max.) | 0.104in |
| Brand | VARIED |
| Additional Industry Cross Reference | 94779A750 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.448in |
| Head Diameter (Min.) | 0.425in |
| Head Height (Max.) | 0.118in |
| Head Height (Min.) | 0.103in |
