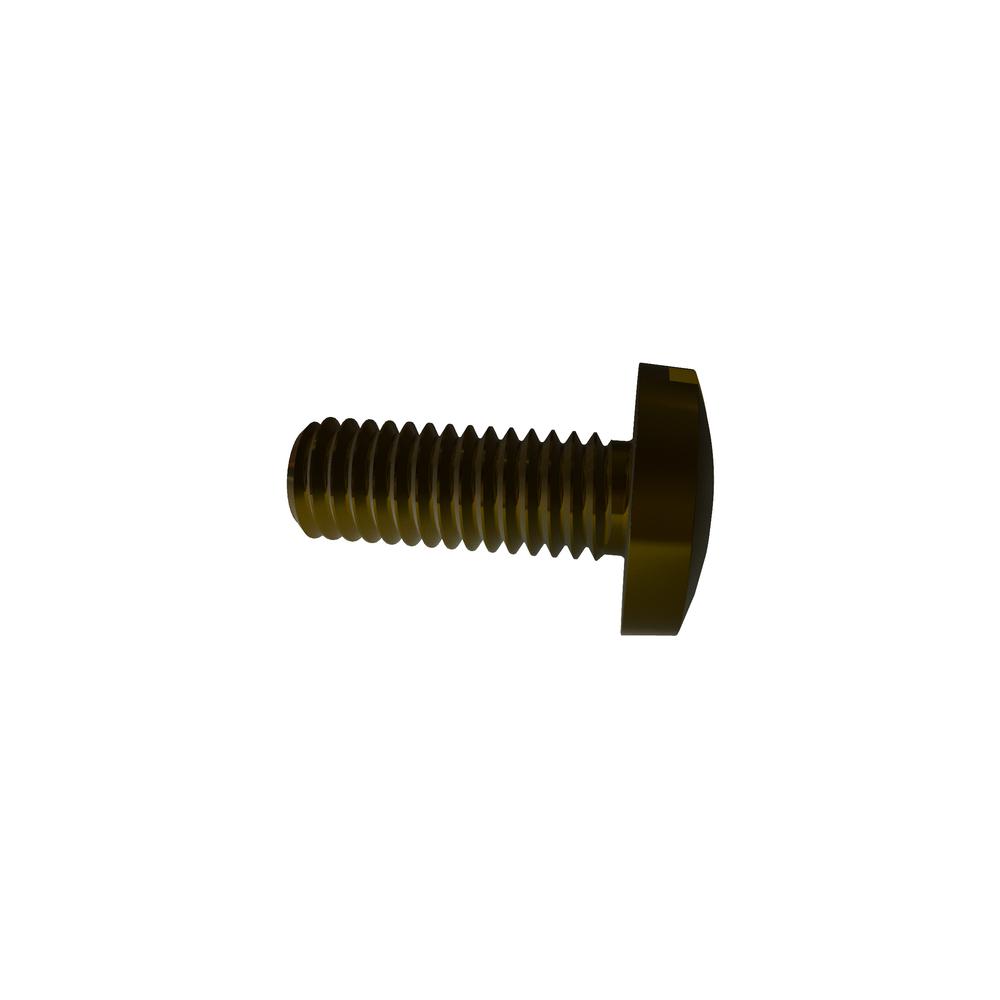

10F50SBMBP
10-32 X 1/2 SLOT BIND BR PLN
Alternate Codes: 92443A829
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 10-32 |
| Material | Brass |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Binding |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.060in |
| Slot Depth (Max.) | 0.077in |
| Slot Width (Min.) | 0.050in |
| Slot Width (Max.) | 0.060in |
| Head Oval Height (Min.) | 0.034in |
| Head Oval Height (Max.) | 0.045in |
| Additional Industry Cross Reference | 92443A829 |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.399in |
| Head Diameter (Min.) | 0.378in |
| Head Height (Max.) | 0.123in |
| Head Height (Min.) | 0.112in |
