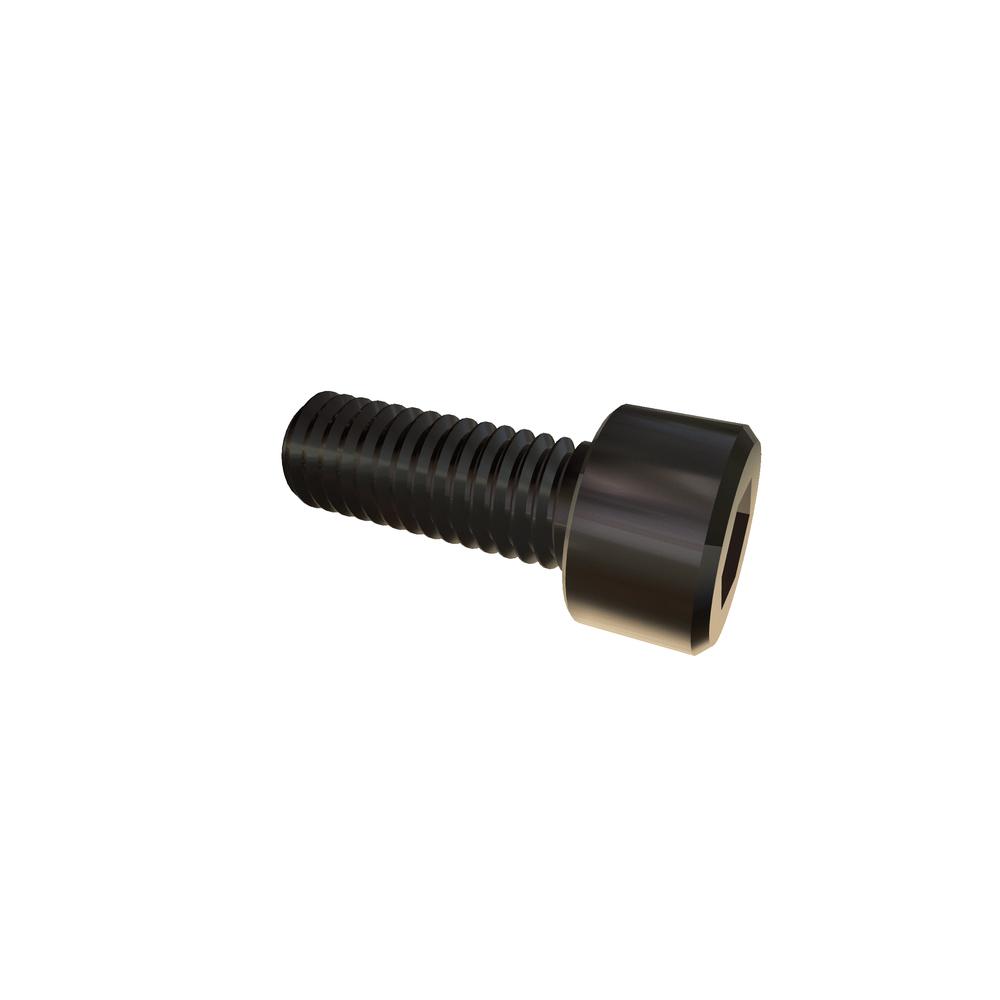

10F50SHC3
10-32 X 1/2 SOC CAP 316 SST RoHS
Alternate Codes: 100-00-174, 92185A989
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.471 | $0.248 | $0.196 | $0.181 | $0.152 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Additional Industry Cross Reference | 92185A989 |
| Key Engagement (Min.) | 0.090in |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Body Diameter (Max.) | 0.190in |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.190in |
| Head Height (Min.) | 0.185in |
| Hex Socket Size | 0.156in |
