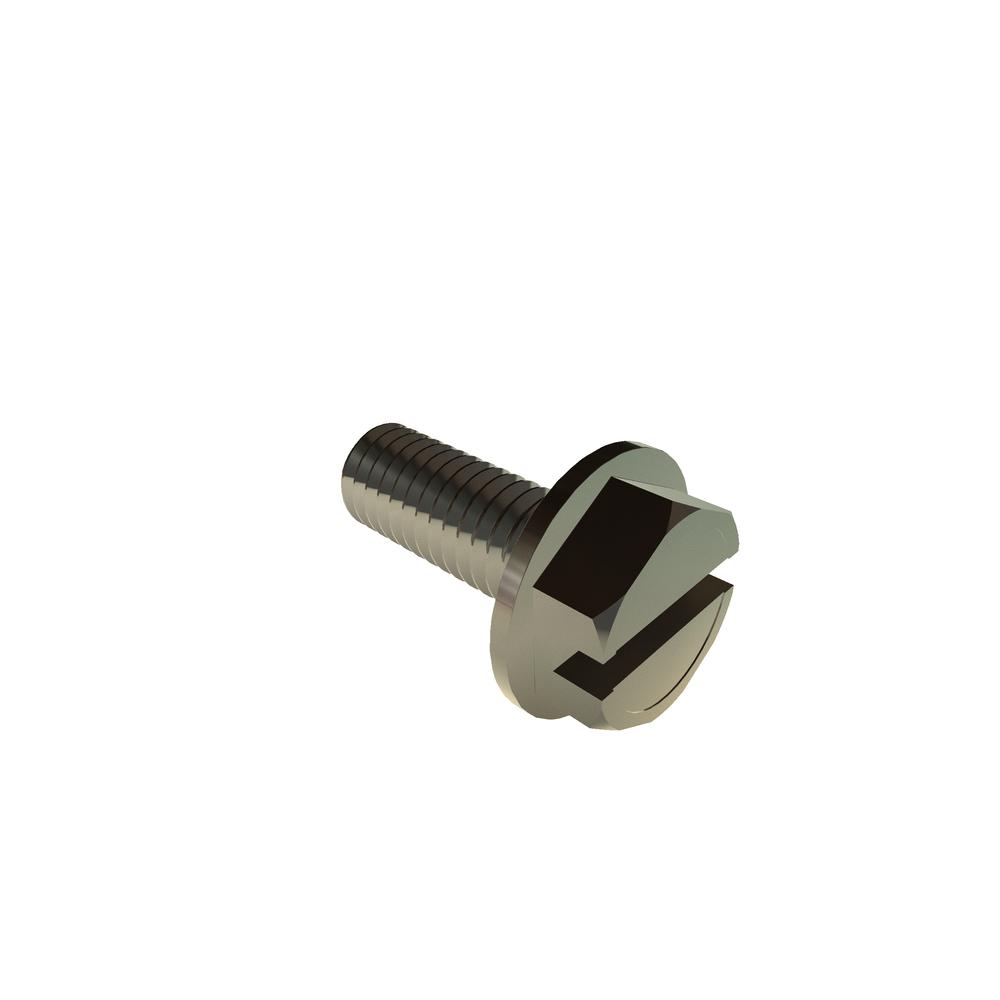

10F50SHWS
10-32 X 1/2 SLOT HWH SST RoHS
Alternate Codes: 90316A829
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.323 | $0.170 | $0.134 | $0.124 | $0.104 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Thread Size | Oct-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.057in |
| Slot Depth (Max.) | 0.080in |
| Slot Width (Min.) | 0.050in |
| Slot Width (Max.) | 0.060in |
| Thickness (Min.) | 0.019in |
| Brand | VARIED |
| Type | Hex Washer Head |
| Additional Industry Cross Reference | 90316A829 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Max.) | 0.120in |
| Head Height (Min.) | 0.105in |
| Width Across Flat (Max.) | 0.312in |
| Width Across Flat (Min.) | 0.305in |
| Thickness (Max.) | 0.031in |
| Washer Diameter (Max.) | 0.414in |
| Washer Diameter (Min.) | 0.384in |
