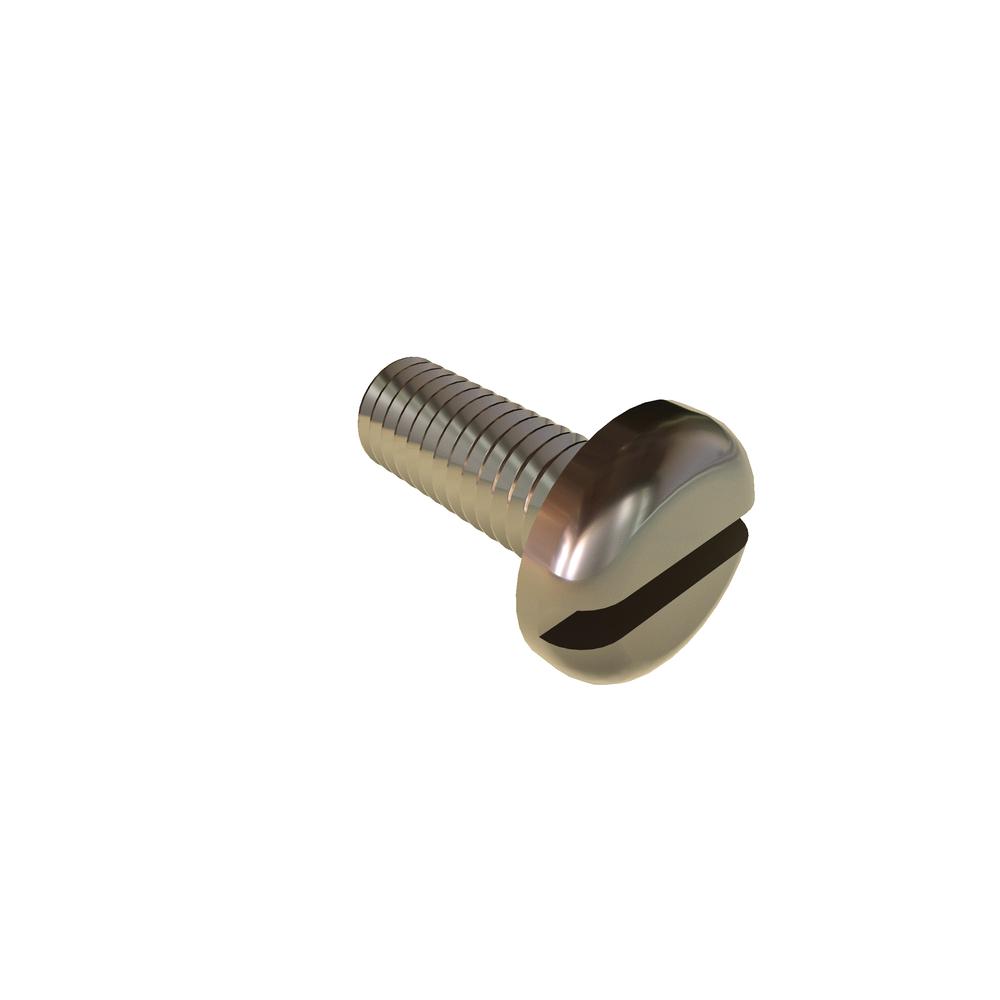

Image for reference purposes only. Actual product may vary.
10F50SPMS/SEEL
10-32 X 1/2 SLOT PAN HD SEELSKREW SST
Alternate Codes: N/A
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Thread Size | 10-32 |
| Finish | Plain |
| O-Ring Thickness | 0.054in |
| O-Ring Diameter | 0.298in |
| Drive Type | Slotted |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Radius (Min.) | 0.061in |
| Slot Depth (Min.) | 0.053in |
| Slot Depth (Max.) | 0.068in |
| Slot Width (Min.) | 0.050in |
| Slot Width (Max.) | 0.060in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.110in |
| Head Height (Min.) | 0.099in |
