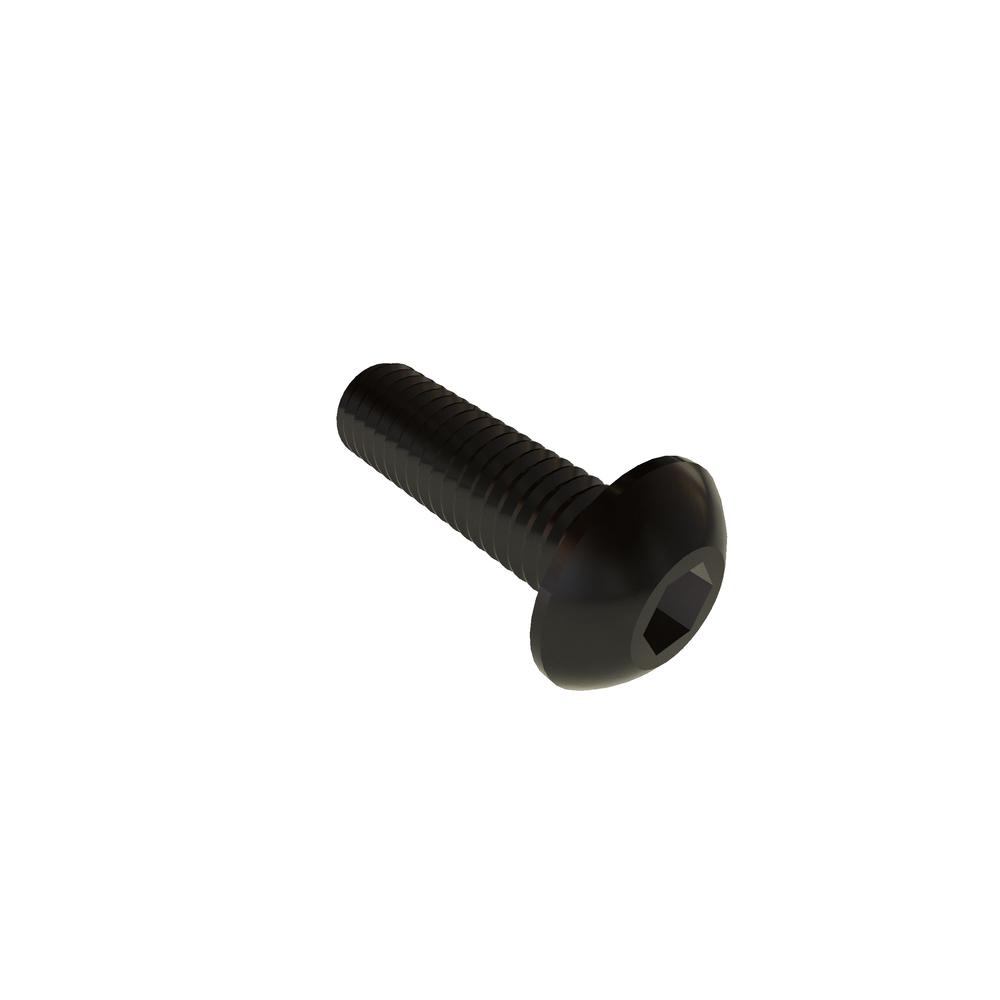

Image for reference purposes only. Actual product may vary.
10F62BHCSB
10-32 X 5/8 BUT SOC SST RoHS BLK RoHS
Alternate Codes: 97763A340
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.638 | $0.351 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Length | 5/8in |
| Thread Size | 10-32 |
| Finish | Black Oxide |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 0.101in |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Fillet Transition Diameter (Min.) | 0.210in |
| Fillet Transition Diameter (Max.) | 0.220in |
| Head Side Height (Ref.) | 0.020in |
| Key Engagement | 0.070in |
| Brand | VARIED |
| Additional Industry Cross Reference | 97763A340 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.361in |
| Head Diameter (Min.) | 0.347in |
| Head Height (Min.) | 0.091in |
| Hex Socket Size | 0.125in |
