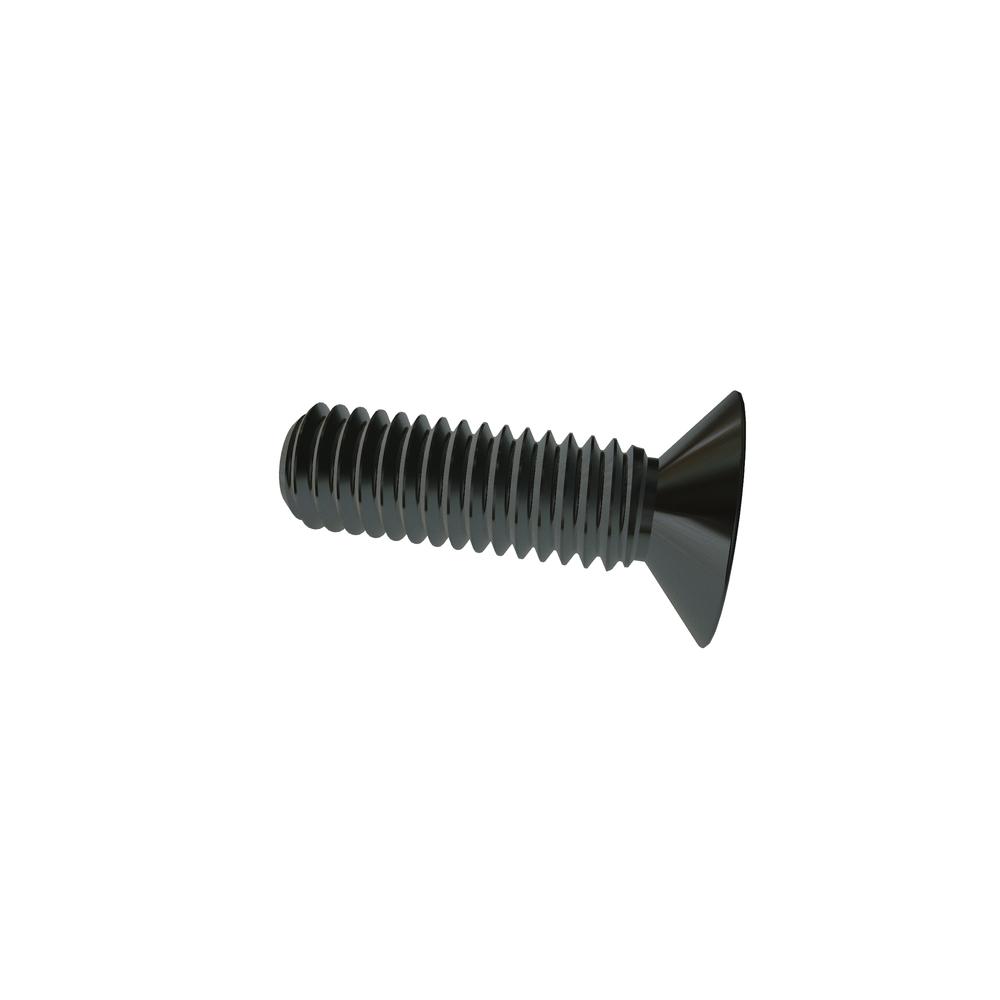

10F62PFHZR
10-32 X 5/8 PHIL FLAT 100 DEG STL ZN CR3
Alternate Codes: 90471A442
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.229 | $0.120 | $0.095 | $0.088 | $0.074 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.178in |
| Nominal Thread Size | 0.190in |
| Head Height | 0.083in |
| Recess Depth (Min.) | 0.082in |
| Recess Depth (Max.) | 0.105in |
| Brand | VARIED |
| Type | Flat Head 100 Degree |
| Additional Industry Cross Reference | 90471A442 90471A442 |
| Length | 0.62in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.329in |
