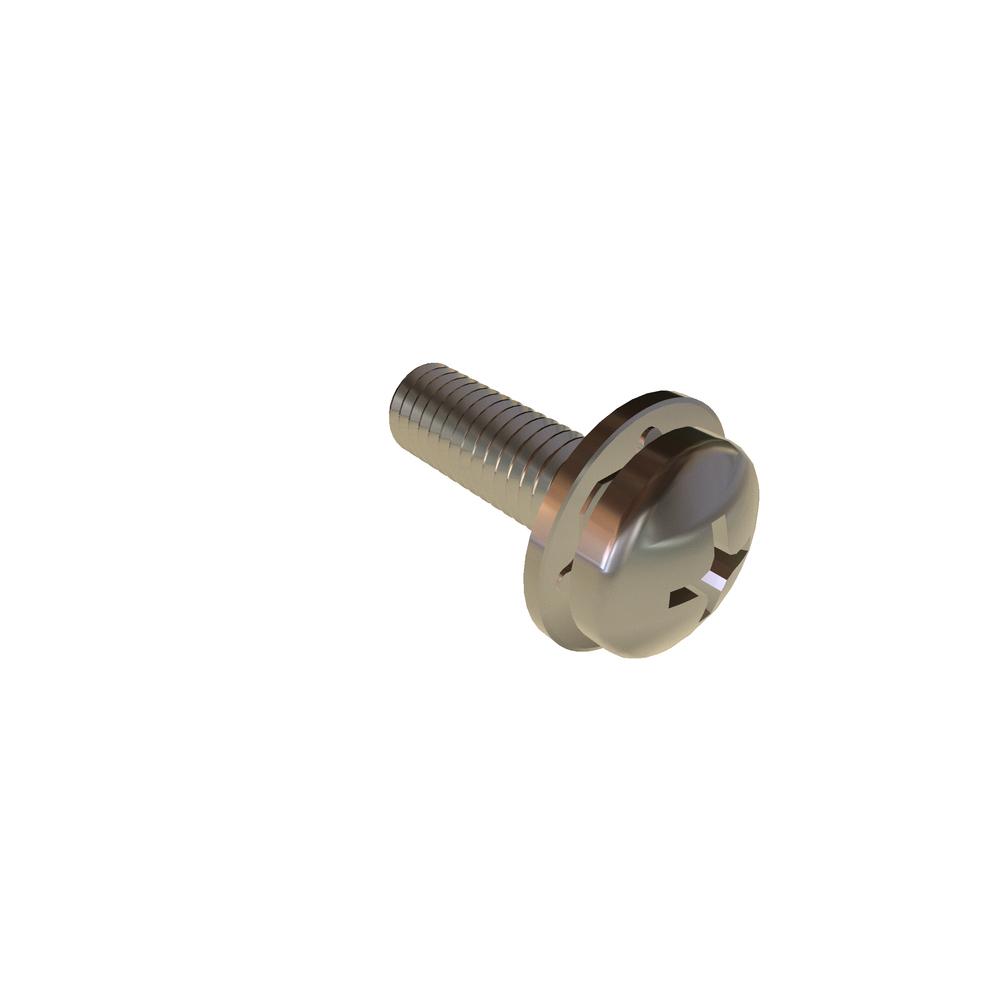

Image for reference purposes only. Actual product may vary.
10F62PPQS
10-32 X 5/8 PH PAN SQ CONE SEMS SST RoHS
Alternate Codes: 91241A775
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 5/8in |
| Thread Size | 10-32 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 0.192in |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Lock Washer Height (Min.) | 0.051in |
| Lock Washer Height (Max.) | 0.075in |
| Lock Washer Outside Diameter (Min.) | 0.433in |
| Lock Washer Outside Diameter (Max.) | 0.446in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Head Radius (Min.) | 0.020in |
| Additional Industry Cross Reference | 91241A775 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Lock Washer Thickness (Min.) | 0.032in |
