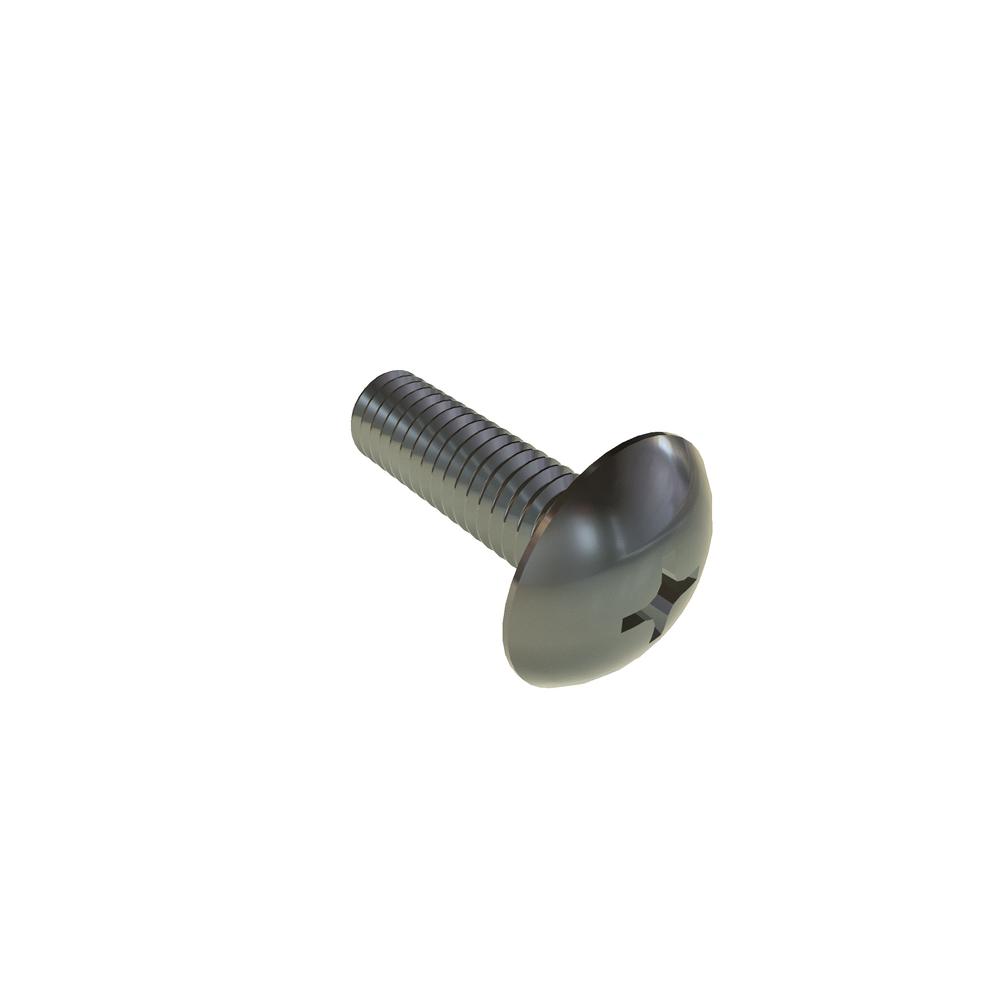

Image for reference purposes only. Actual product may vary.
10F62PTMZN
10-32 X 5/8 PHIL TRUSS STL NI
Alternate Codes: N/A
10-32 X 5/8 Phillips TRUSS Head Steel Nickel plated RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.62in |
| Thread Size | 10-32 |
| Finish | Nickel |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Truss |
| Drive Size | 2 |
| Recess Diameter | 0.181in |
| Head Radius (Min.) | 0.283in |
| Recess Depth (Min.) | 0.079in |
| Recess Depth (Max.) | 0.104in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.448in |
| Head Diameter (Min.) | 0.425in |
| Head Height (Max.) | 0.118in |
| Head Height (Min.) | 0.103in |
