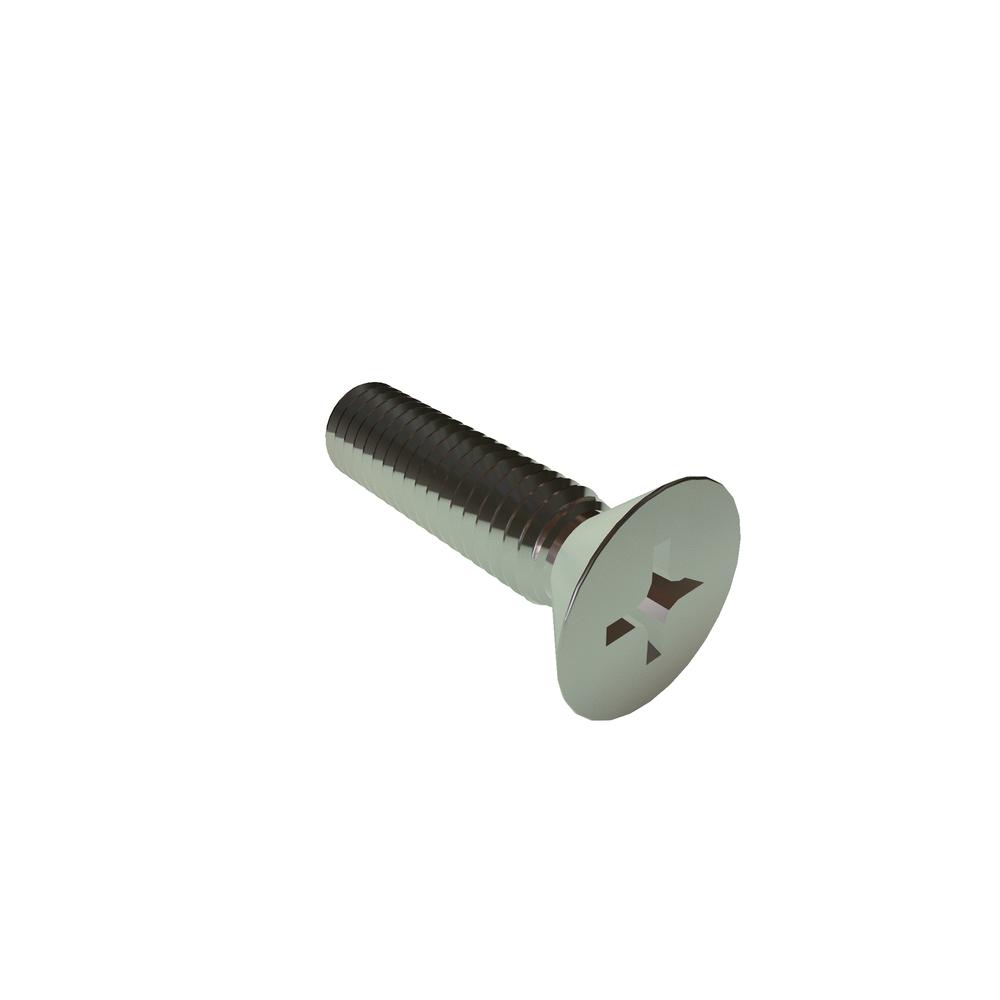

10-32 X 3/4 PHIL FLAT SST RoHS
10F75PFMS
| Item Id | 10F75PFMS |
| Description | 10-32 X 3/4 PHIL FLAT SST RoHS |
| Alternate Codes | 005282, 100-05-347, 12-212060-12, 2806-0217-12, 517583, MS51960-67 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A831 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Head Height | 0.116in |
| Head Type | Flat |
| Length | 0.75in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.125in |
| Recess Depth (Min.) | 0.102in |
| Recess Diameter | 0.198in |
| RoHS | Compliant |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
