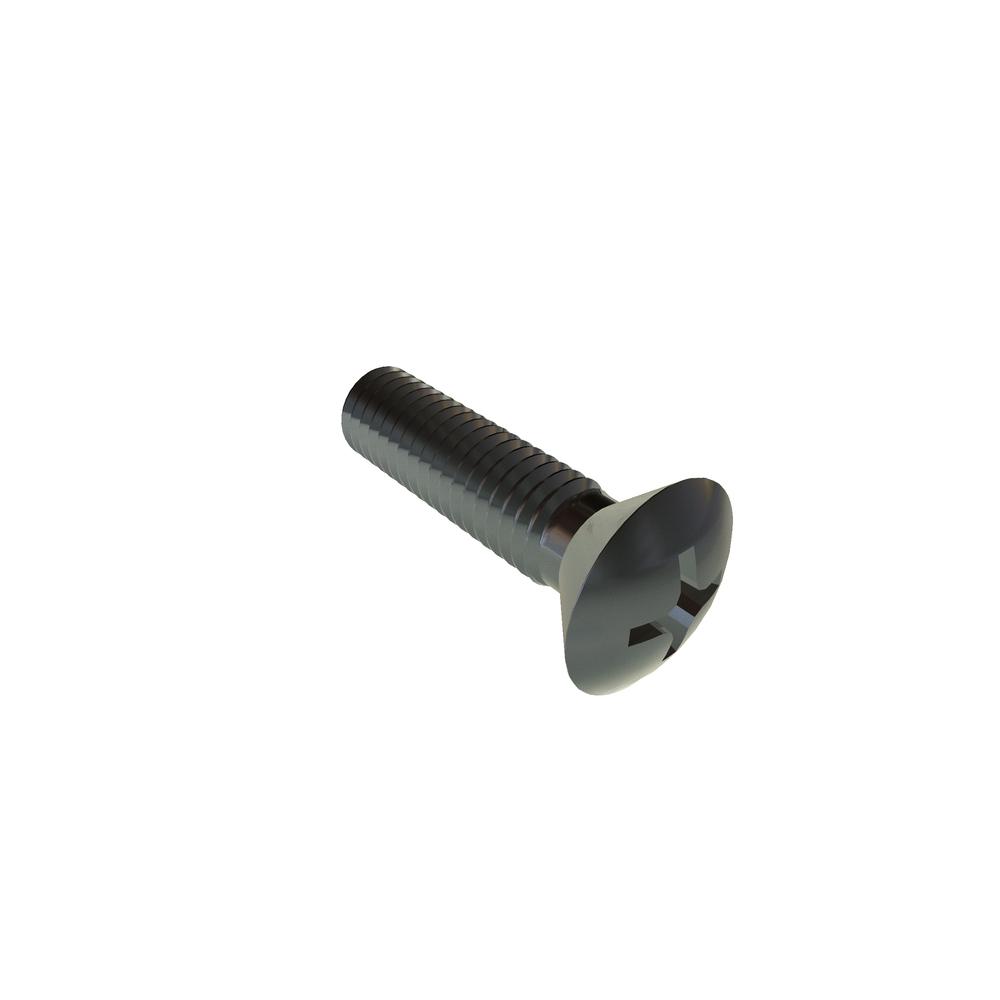

10F75POMZN
10-32 X 3/4 PHIL OVAL STL NI
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.515 | $0.271 | $0.214 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Nickel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Oval |
| Drive Type | Phillips |
| Recess Diameter | 0.202in |
| Slot Depth (Min.) | 0.084in |
| Slot Depth (Max.) | 0.103in |
| Slot Width (Min.) | 0.050in |
| Slot Width (Max.) | 0.060in |
| Head Side Height (Ref.) | 0.116in |
| Head Height | 0.176in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.126in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Crown Height | 0.060in |
