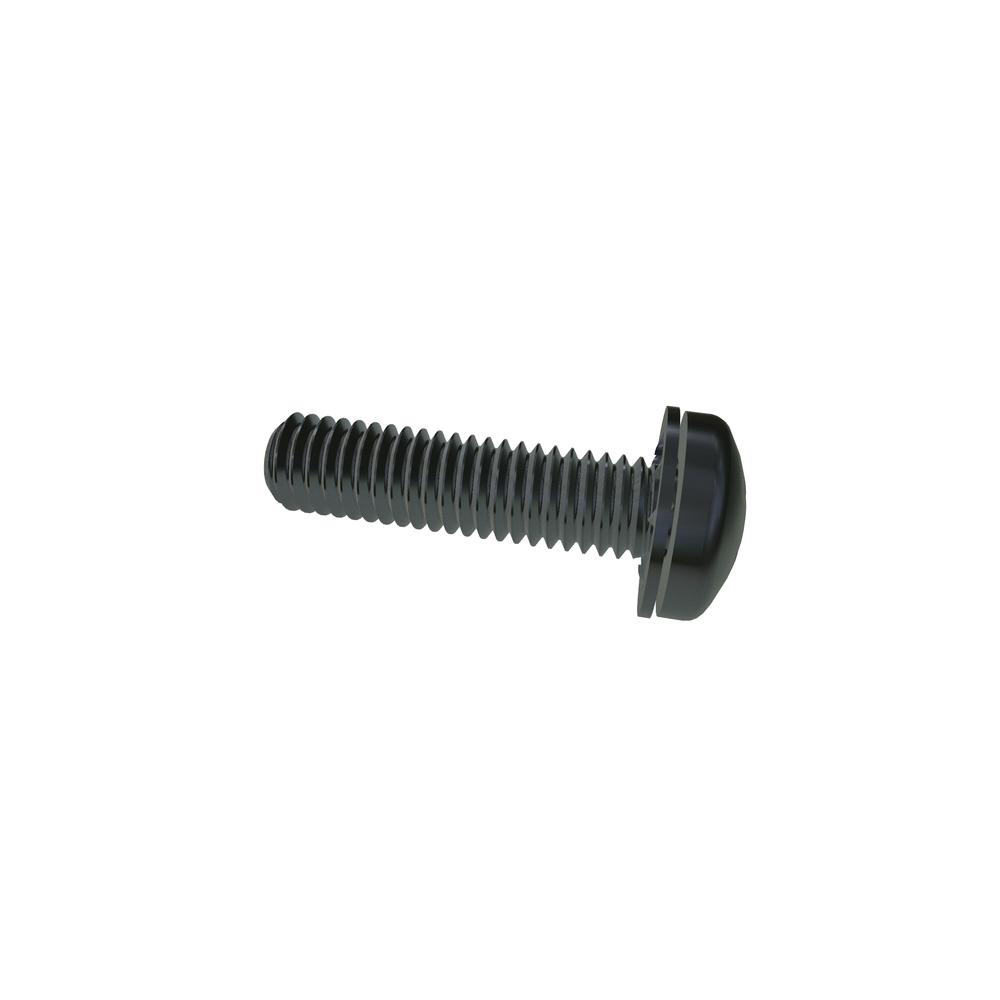

Image for reference purposes only. Actual product may vary.
10F75PPIZR
10-32 X 3/4 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.260 | $0.137 | $0.108 | $0.100 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 3/4in |
| Thread Size | 10-32 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 0.192in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.024in |
| Lock Washer Outside Diameter (Min.) | 0.372in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Head Radius (Min.) | 0.020in |
| Lock Washer Thickness (Min.) | 0.018in |
