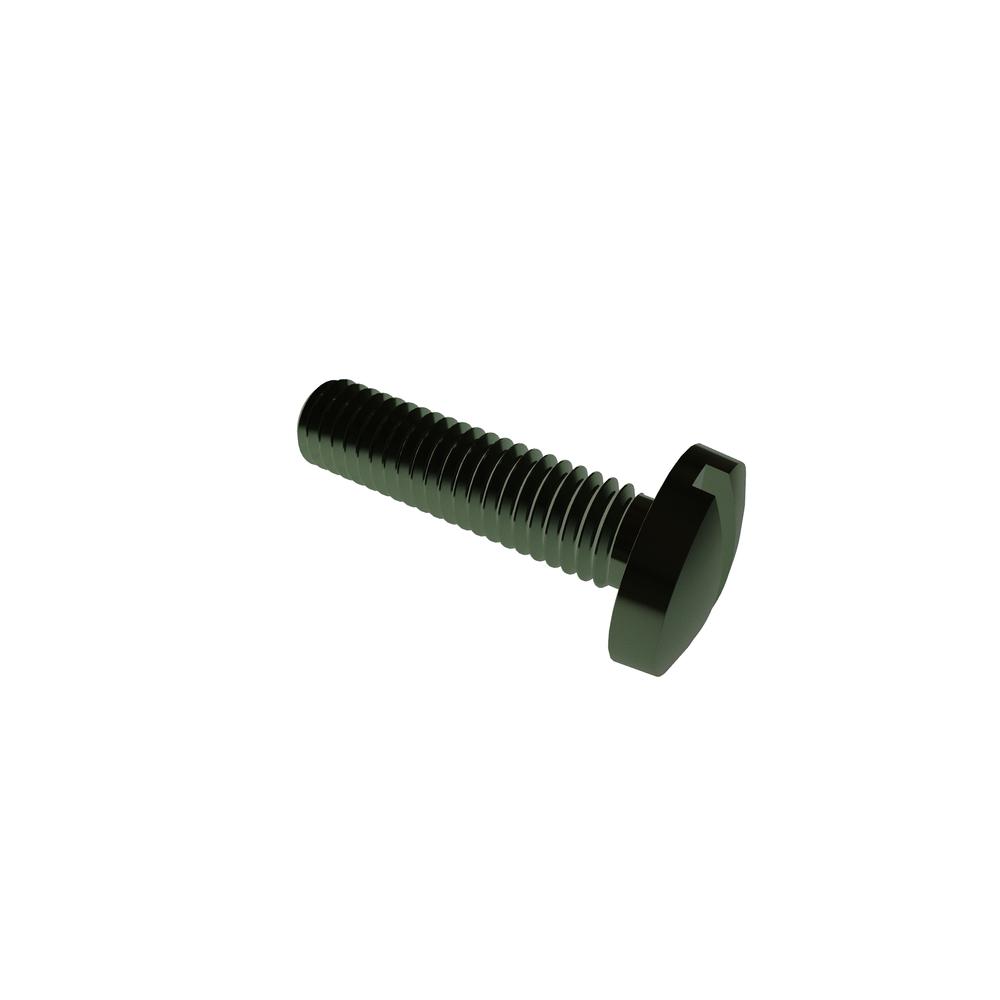

10-32 X 3/4 SLOT BIND STL ZN RoHS
10F75SBMZR
| Item Id | 10F75SBMZR |
| Description | 10-32 X 3/4 SLOT BIND STL ZN RoHS |
| Alternate Codes | 90277A831 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90277A831 |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.399in |
| Head Diameter (Min.) | 0.378in |
| Head Height (Max.) | 0.123in |
| Head Height (Min.) | 0.112in |
| Head Oval Height (Max.) | 0.045in |
| Head Oval Height (Min.) | 0.034in |
| Head Type | Binding |
| Length | 0.75in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.077in |
| Slot Depth (Min.) | 0.060in |
| Slot Width (Max.) | 0.060in |
| Slot Width (Min.) | 0.050in |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Type | Machine Screw |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
