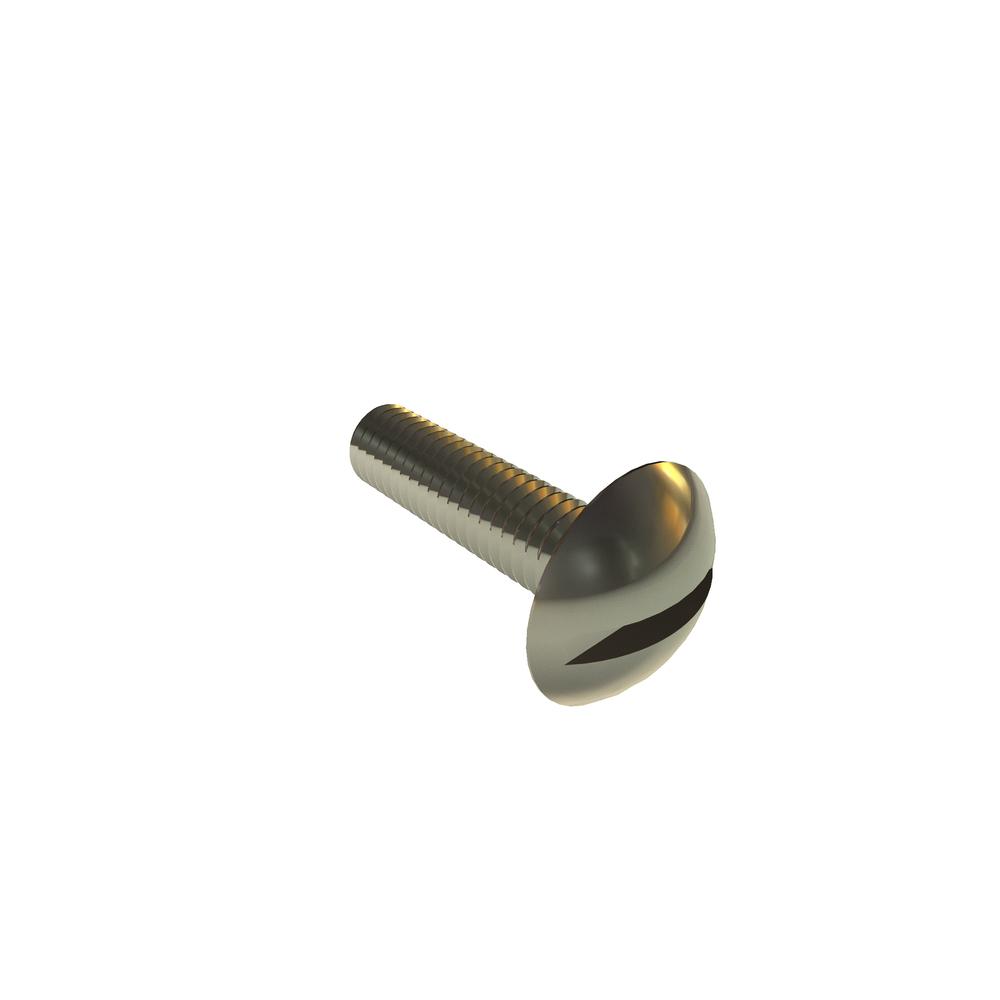

10F75STMS
10-32 X 3/4 SLOT TRUSS SST RoHS
Alternate Codes: 90015A374
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.567 | $0.312 | $0.260 | $0.223 | $0.184 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Truss |
| Drive Type | Slotted |
| Head Radius (Min.) | 0.283in |
| Slot Depth (Min.) | 0.053in |
| Slot Depth (Max.) | 0.068in |
| Slot Width (Min.) | 0.050in |
| Slot Width (Max.) | 0.060in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90015A374 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.448in |
| Head Diameter (Min.) | 0.425in |
| Head Height (Max.) | 0.118in |
| Head Height (Min.) | 0.103in |
