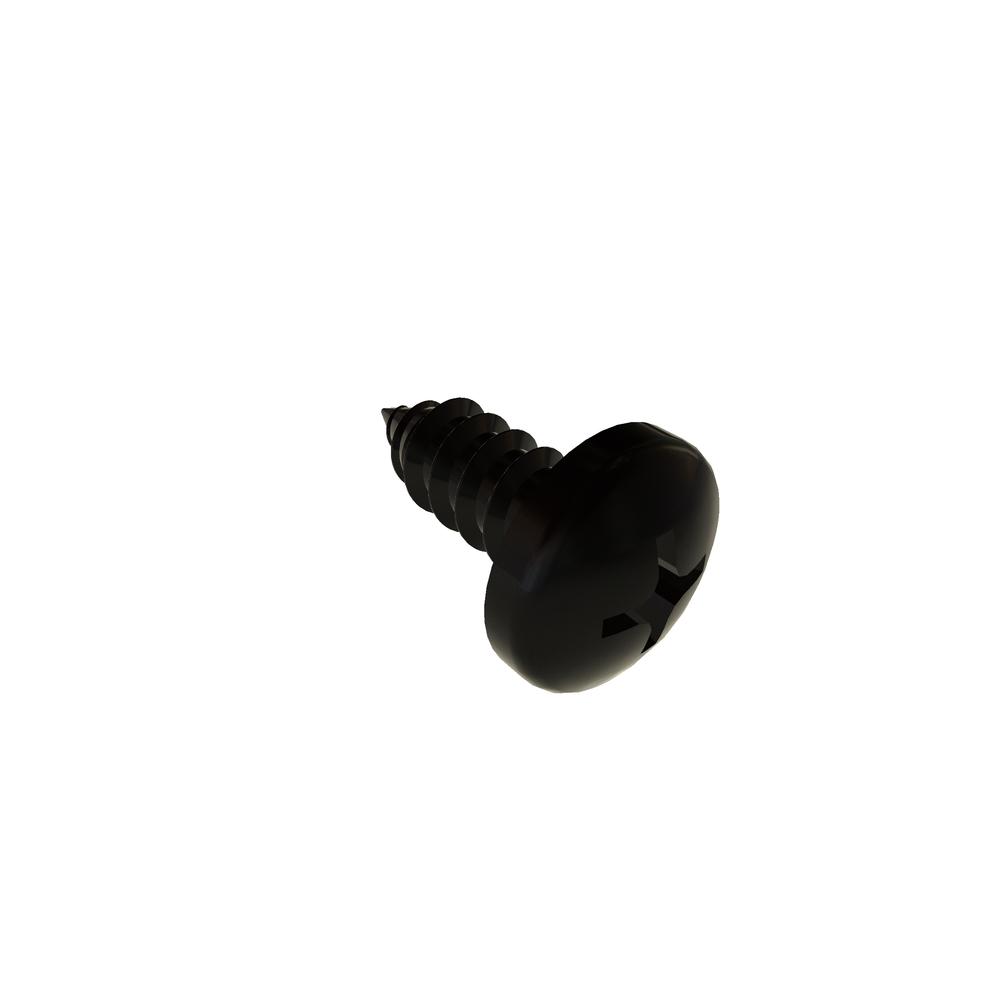

10 X 1/2 PHIL PAN T-AB STL BLK RoHS
10N50PPAZB
| Item Id | 10N50PPAZB |
| Description | 10-16 X 1/2 PHIL PAN TYPE-AB STL BLK OX |
| Alternate Codes | 164-0005, 90935A243 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90935A243 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Head Radius (Min.) | 0.020in |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.113in |
| Recess Depth (Min.) | 0.089in |
| Recess Diameter | 0.192in |
| RoHS | Compliant |
| Thread Size | 10-16 |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
