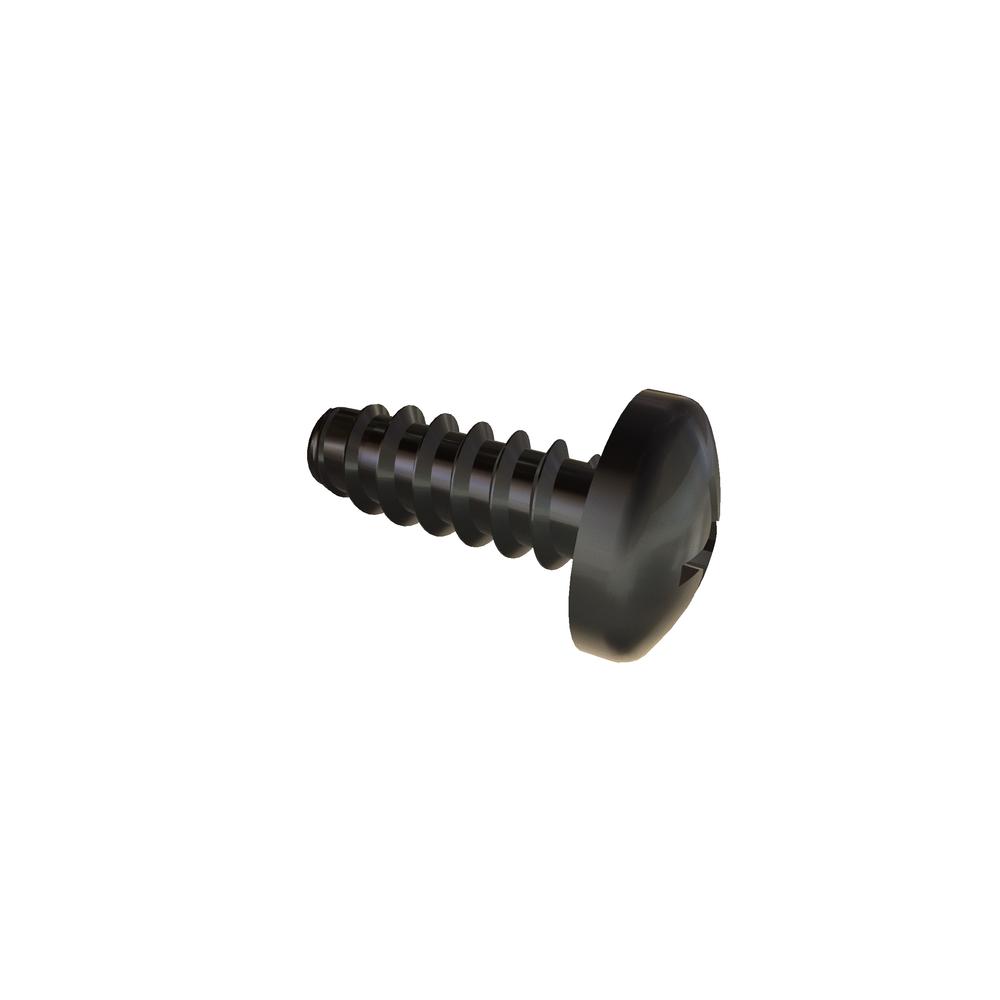

10N50PPBS
#10 X 1/2 PHIL PAN T-B STNLS
Alternate Codes: 92525A553
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.220 | $0.116 | $0.092 | $0.085 | $0.071 | Larger Quantities |
In Stock
| Thread Size | 10-16 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Nominal Diameter | 0.190in |
| Head Type | Pan Head |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Recess Depth | 0.112in |
| Recess Width | 0.031in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92525A553 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.4 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
