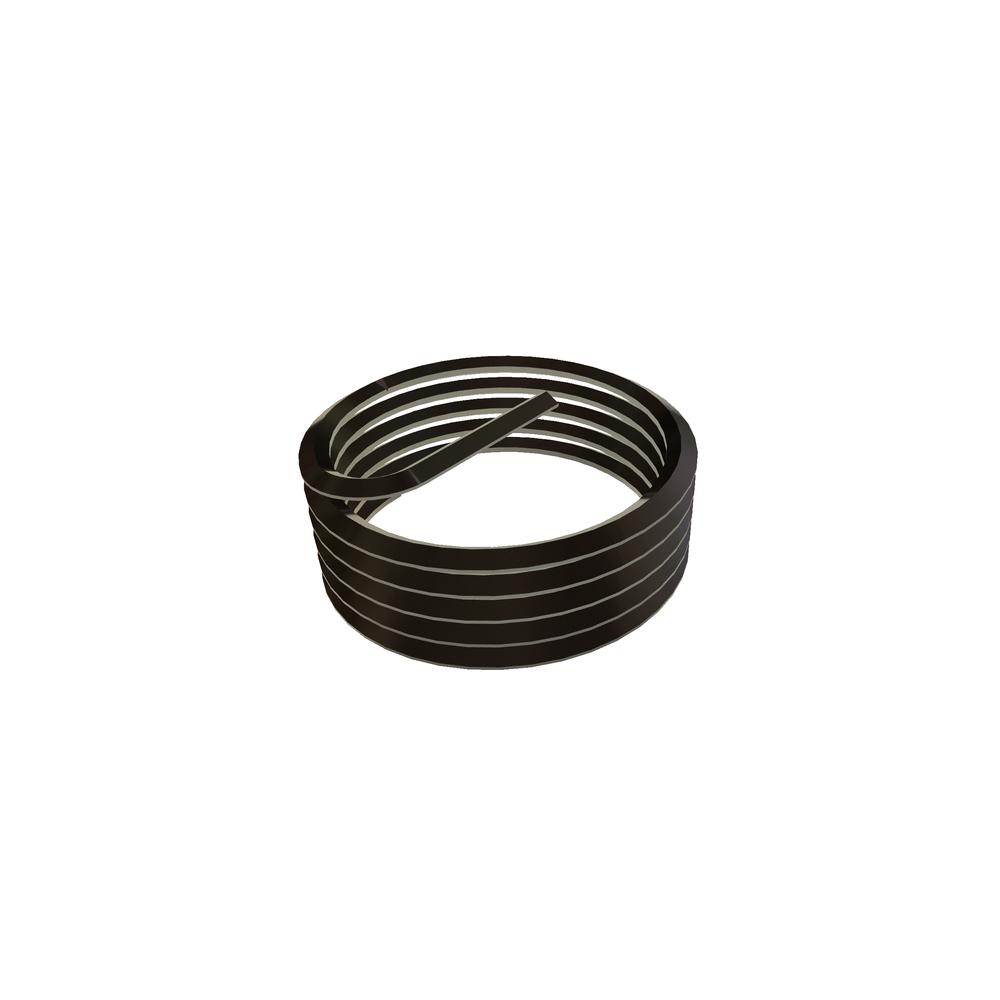

1185-04CN168
4-40 F/R HELI INS
Alternate Codes: 012-1626-000, 1600115-403, 5325-00-842-5920, 5340-00-842-5920, AS8456-72, B68003, MS122116, MS21208-C0415, NASM122116
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.500 | $0.333 | $0.299 | $0.267 | $0.222 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Free Coil Diameter (Min.) | 0.144in |
| Free Coil Diameter (Max.) | 0.159in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 4 3/4 |
| Packaging | Bulk |
| Brand | HELICOIL/STANLEY |
| Type | Standard Inserts (free-running) |
| Additional Industry Cross Reference | 91732A285 |
| RoHS | Compliant |
