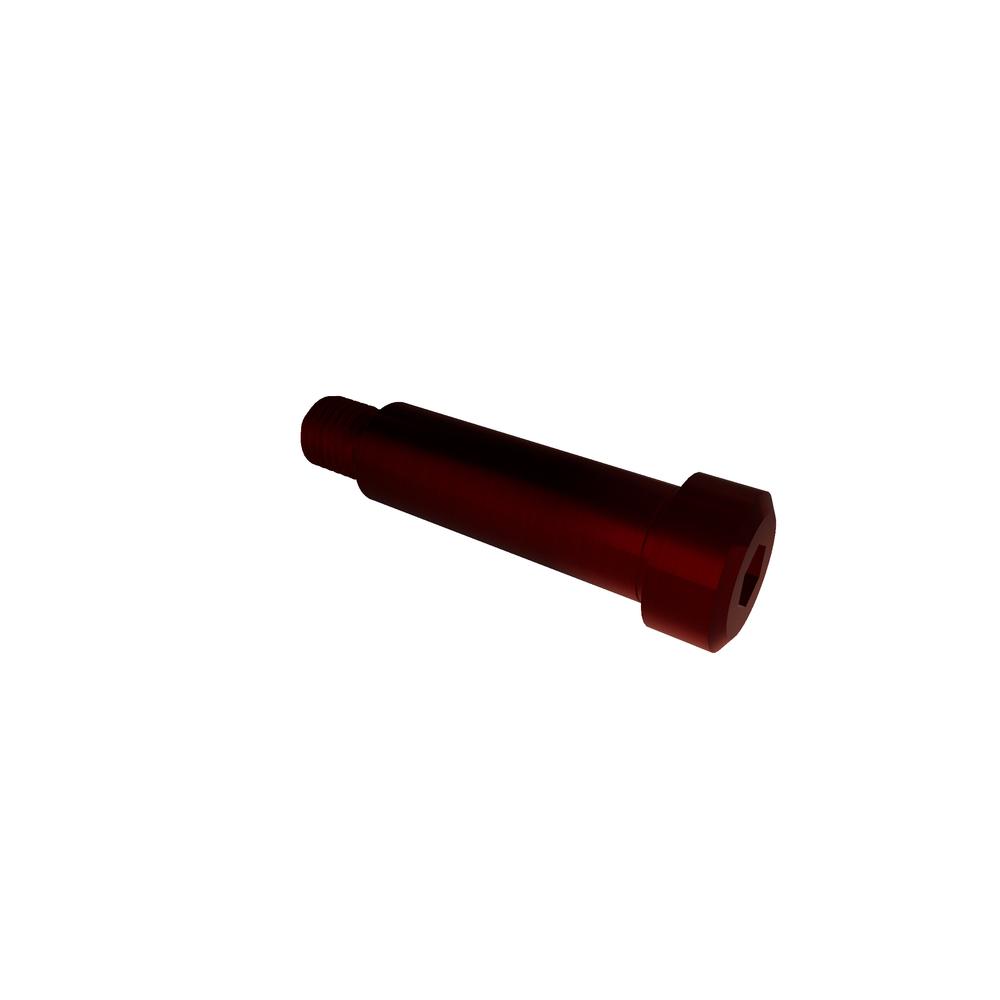

Image for reference purposes only. Actual product may vary.
125R350SHBA
1 1/4 X 3 1/2 SHLDR BOLT ALLOY
Alternate Codes: 91259A316
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $59.154 | $54.147 | $50.078 | $48.200 | $46.322 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.875in |
| Length | 1 1/2in |
| Thread Size | 7/8/2009 |
| Finish | Plain |
| Nominal Shoulder Diameter | 1.250in |
| Material | Alloy |
| Thread Length | 1.125in |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Key Engagement | 0.469in |
| Head Side Height (Min.) | 0.102in |
| Shoulder Diameter | 1-1/4in |
| Shoulder Diameter (Min.) | 1.246in |
| Shoulder Diameter (Max.) | 1.248in |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 91259A316 |
| Meets (Standard) | ASME B18.3-2012 |
| Head Diameter (Max.) | 1.750in |
| Head Diameter (Min.) | 1.723in |
| Head Height (Max.) | 0.750in |
| Head Height (Min.) | 0.735in |
| Hex Socket Size | 0.625in |
