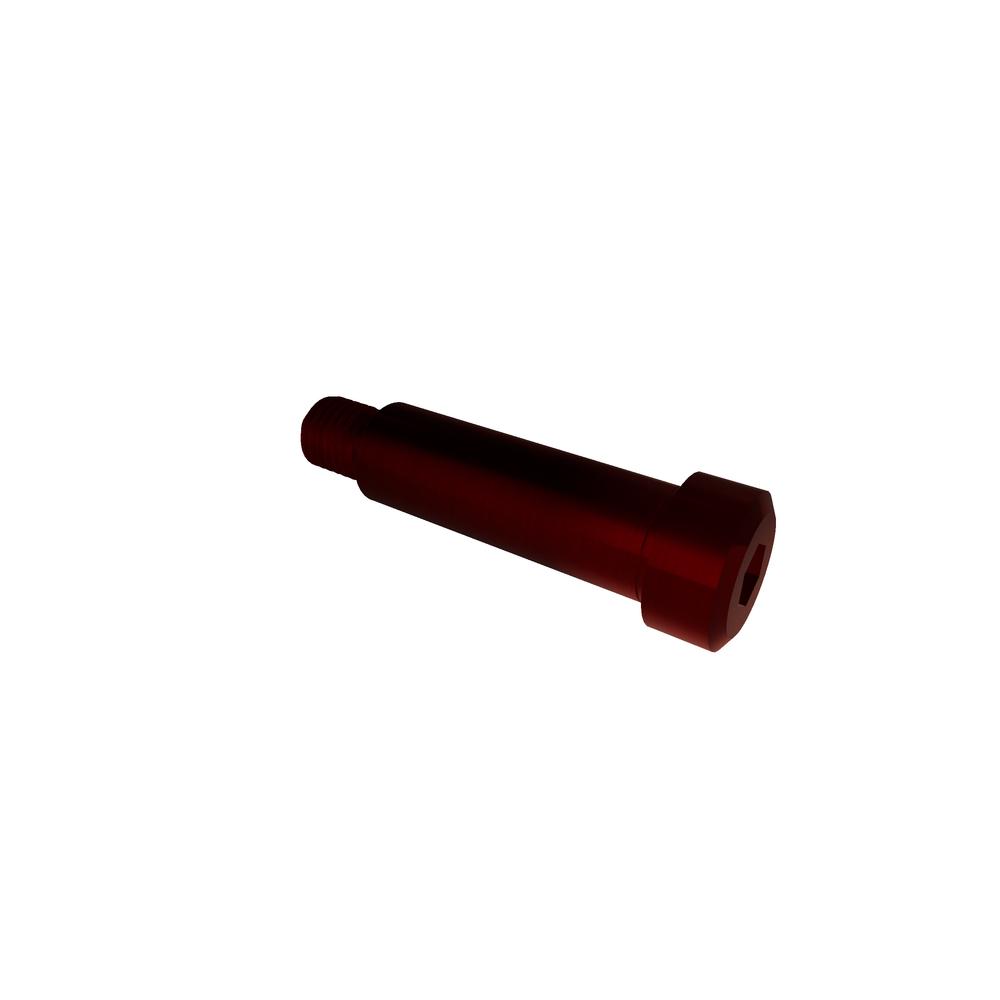

125R400SHBA
1 1/4 X 4 SHLDR BOLT ALLOY
Alternate Codes: 91259A319
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 7/8-9 |
| Thread Size | 7/8/2009 |
| Material | Alloy |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.875in |
| Key Engagement | 0.469in |
| Head Side Height (Min.) | 0.102in |
| Shoulder Diameter | 1-1/4in |
| Nominal Shoulder Diameter | 1.250in |
| Shoulder Diameter (Min.) | 1.246in |
| Shoulder Diameter (Max.) | 1.248in |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 91259A319 |
| Length | 4in |
| Meets (Standard) | ASME B18.3-2012 |
| Head Diameter (Max.) | 1.750in |
| Head Diameter (Min.) | 1.723in |
| Head Height (Max.) | 0.750in |
| Head Height (Min.) | 0.735in |
| Hex Socket Size | 0.625in |
| Thread Length | 1.125in |
