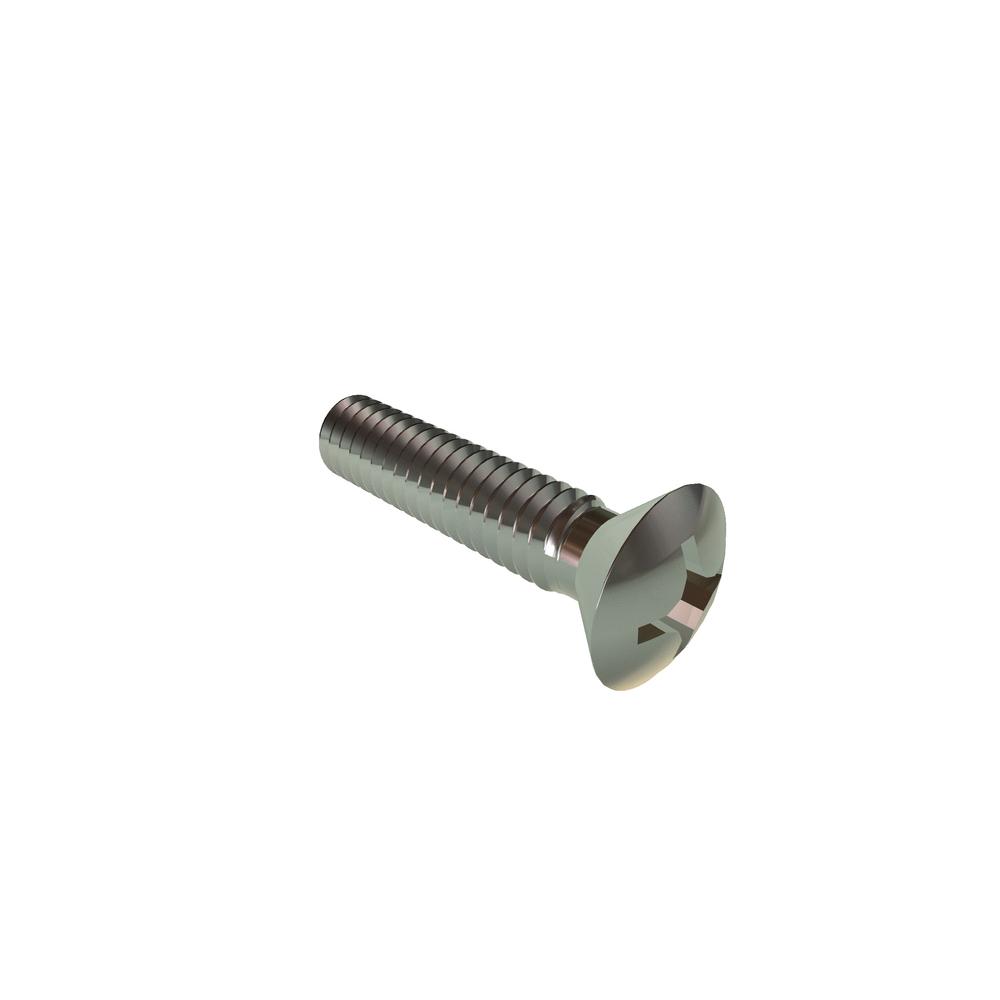

12C100POMS
12-24 X 1 PHIL OVAL SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 12-24 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.216in |
| Head Type | Oval |
| Drive Type | Phillips |
| Recess Diameter | 0.264in |
| Slot Depth (Min.) | 0.096in |
| Slot Depth (Max.) | 0.117in |
| Slot Width (Min.) | 0.056in |
| Slot Width (Max.) | 0.067in |
| Head Side Height (Ref.) | 0.132in |
| Head Height | 0.200in |
| Recess Depth (Min.) | 0.111in |
| Recess Depth (Max.) | 0.135in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91802A376 |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.412in |
| Head Diameter (Min.) | 0.380in |
| Crown Height | 0.068in |
