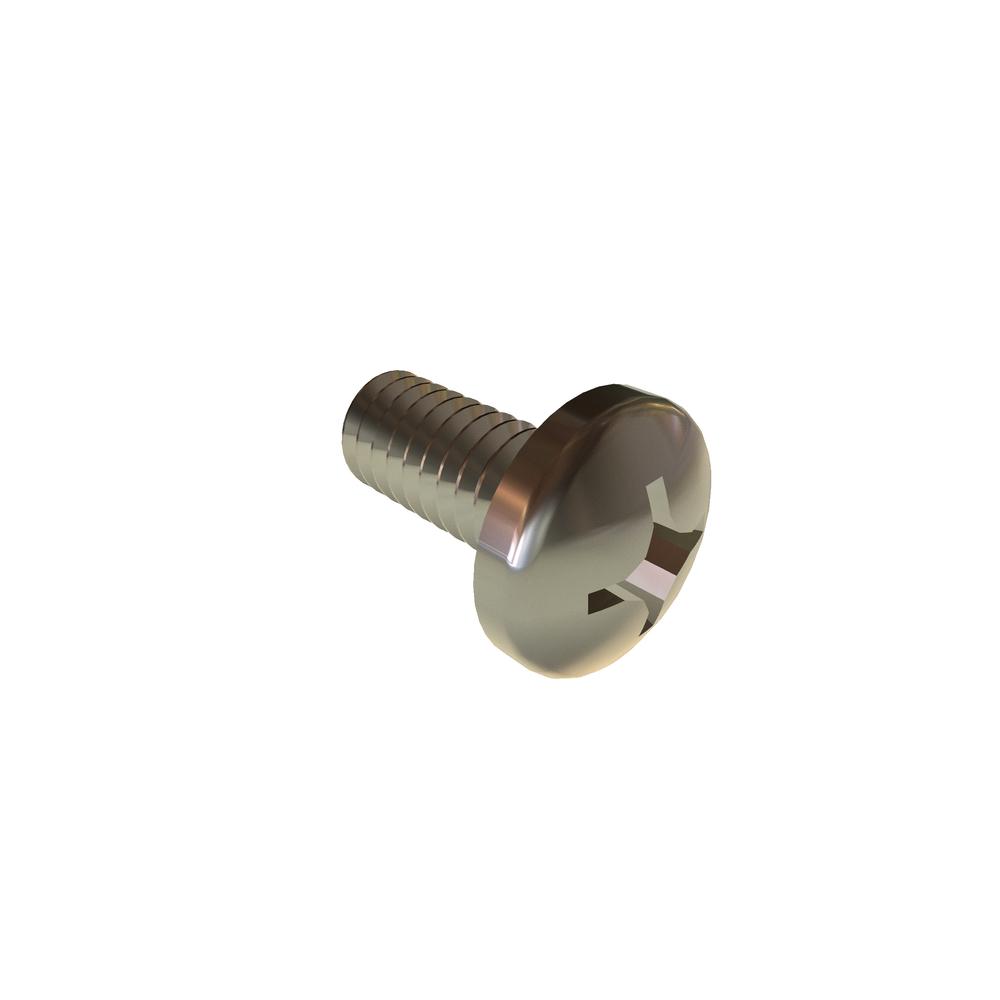

12C50PPMS
12-24 X 1/2 PH PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.257 | $0.135 | $0.107 | $0.099 | $0.083 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 12-24 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.216in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 0.252in |
| Head Radius (Min.) | 0.025in |
| Recess Depth (Min.) | 0.098in |
| Recess Depth (Max.) | 0.124in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A291 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.425in |
| Head Diameter (Min.) | 0.407in |
| Head Height (Max.) | 0.151in |
| Head Height (Min.) | 0.139in |
