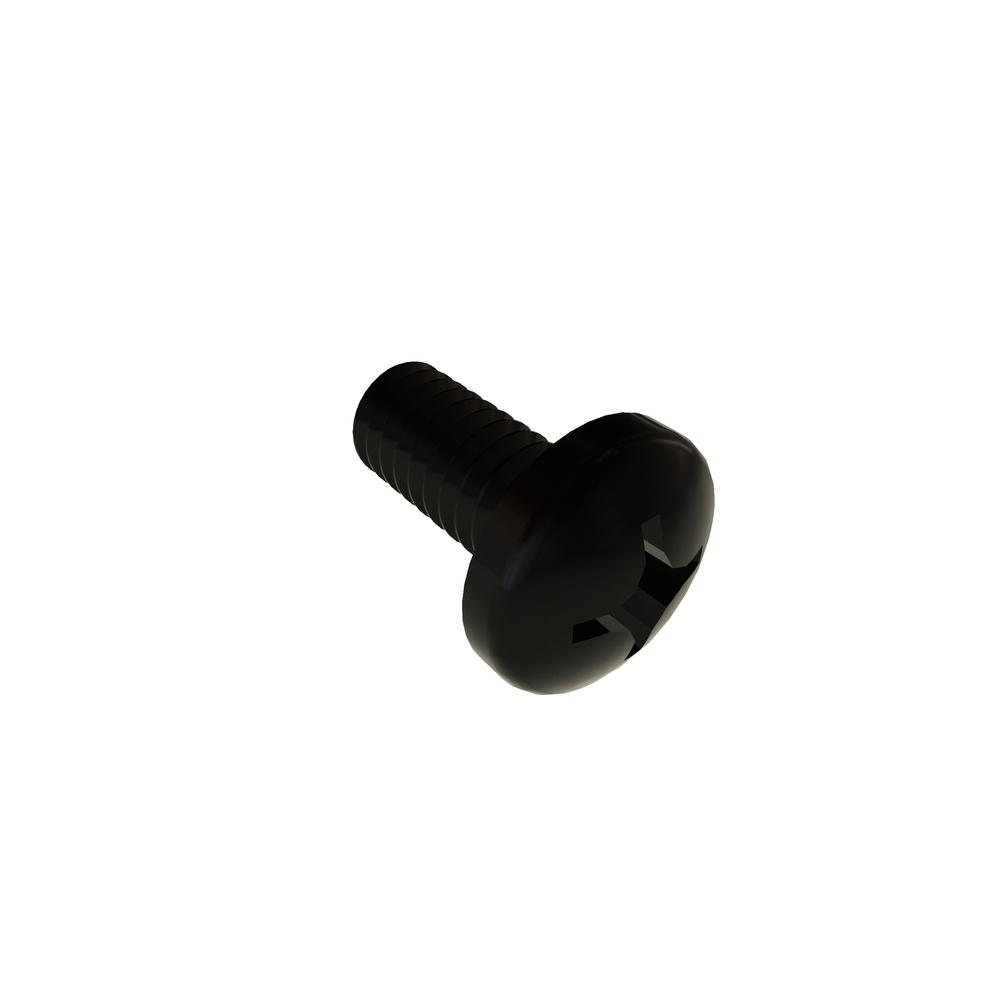

12-24 X 1/2 PH PAN STL BLK RoHS
12C50PPMZB
| Item Id | 12C50PPMZB |
| Description | 12-24 X 1/2 PHIL PAN STL BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.425in |
| Head Diameter (Min.) | 0.407in |
| Head Height (Max.) | 0.151in |
| Head Height (Min.) | 0.139in |
| Head Radius (Min.) | 0.025in |
| Head Type | Pan |
| Length | 0.50in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.216in |
| Recess Depth (Max.) | 0.124in |
| Recess Depth (Min.) | 0.098in |
| Recess Diameter | 0.252in |
| RoHS | Compliant |
| Thread Size | 12-24 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
