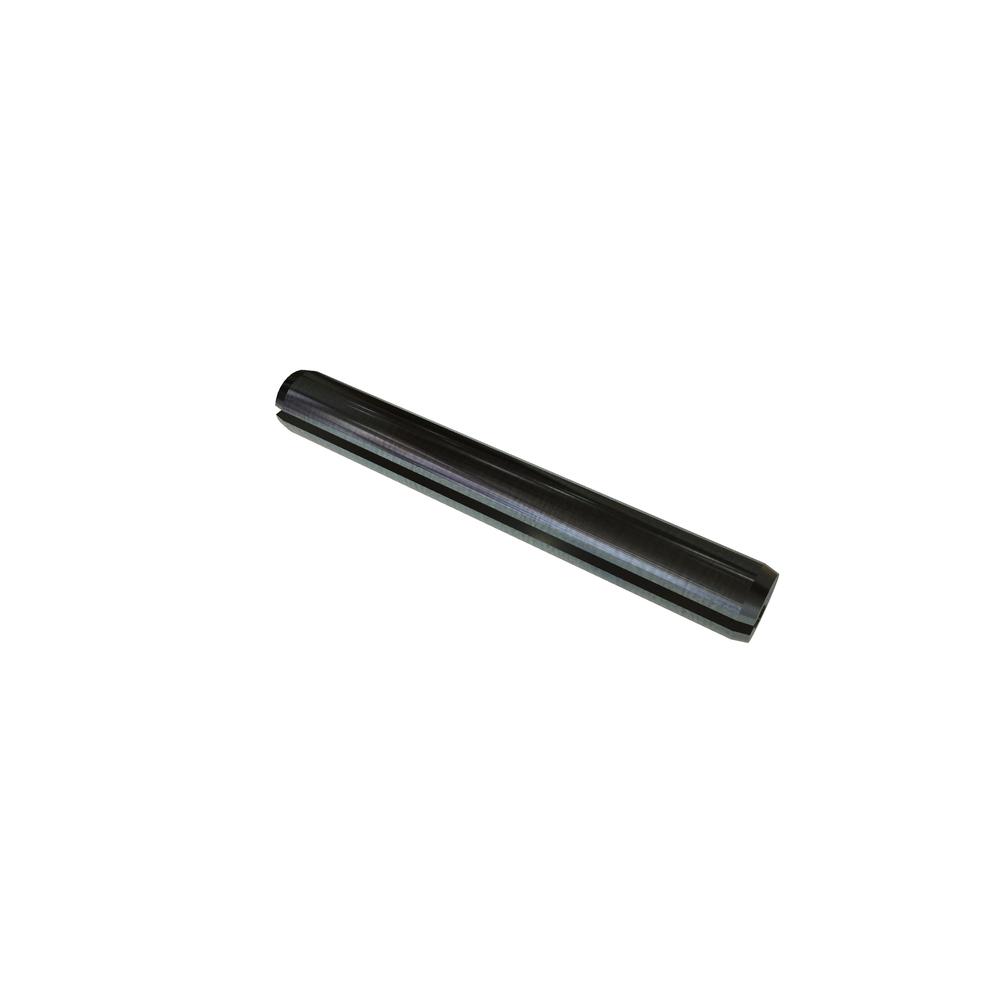

12R100ROLAR
1/8 X 1 ROLL PIN ALLOY ZN CR3
Alternate Codes: 90692A700
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|
| $0.222 | $0.133 | $0.111 | $0.091 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Alloy Steel |
| Finish | Zinc Plated Cr3 |
| Units | Inch |
| Nominal Diameter | 1/8in |
| Pin Diameter (Min.) | 0.131in |
| Pin Diameter (Max.) | 0.135in |
| Chamfer Length (Min.) | 0.008in |
| Chamfer Length (Max.) | 0.044in |
| Recommended Hole Size (Min.) | 0.125in |
| Recommended Hole Size (Max.) | 0.129in |
| Wall Thickness | 0.028in |
| Chamfer Diameter | 0.122in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90692A700 |
| RoHS | Compliant |
