12R25SHB3

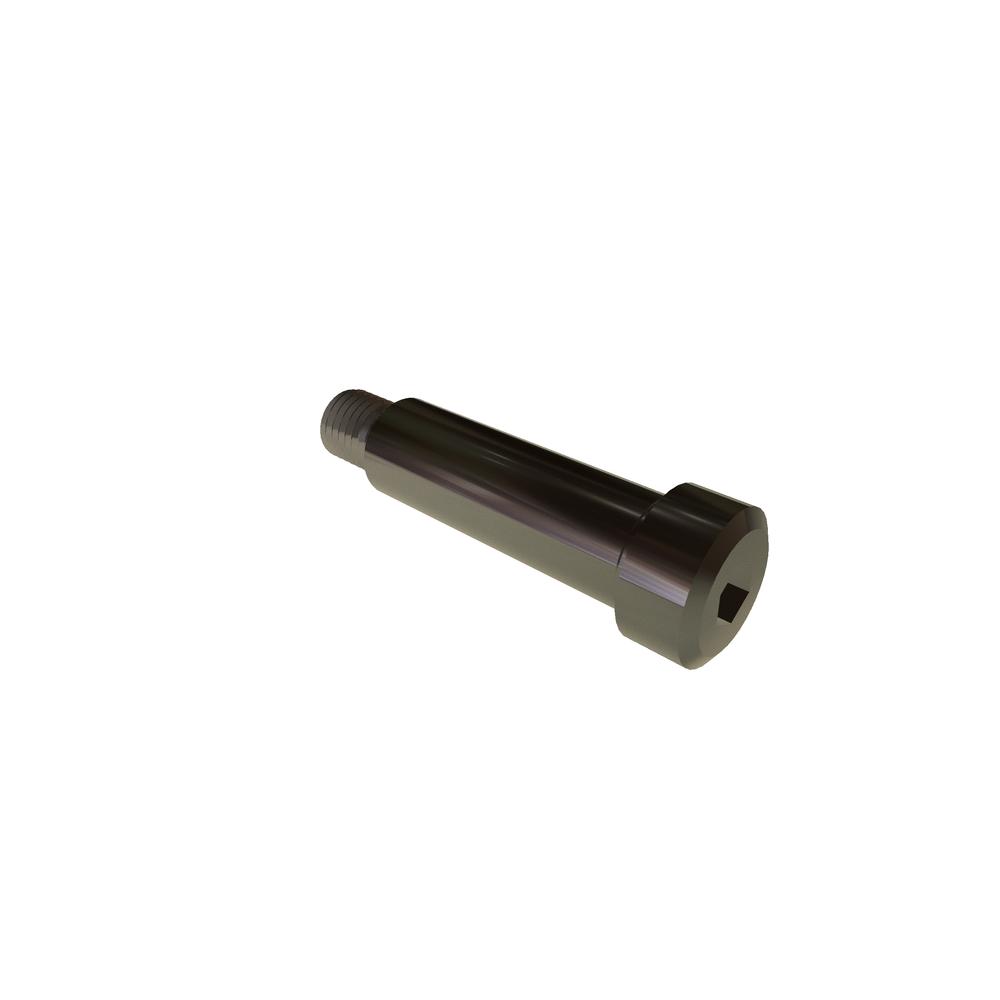

1/8 X 1/4 SHLDR BOLT 316 SST RoHS
Alternate Codes: 97345A416
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Key Engagement | 0.067in |
| Head Side Height (Min.) | 0.008in |
| Shoulder Diameter | 1/8in |
| Nominal Shoulder Diameter | 0.125in |
| Shoulder Diameter (Min.) | 0.121in |
| Shoulder Diameter (Max.) | 0.123in |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 97345A416 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3-2012 |
| Head Diameter (Max.) | 0.250in |
| Head Diameter (Min.) | 0.235in |
| Head Height (Max.) | 0.125in |
| Head Height (Min.) | 0.115in |
| Hex Socket Size | 0.078in |
| Thread Length | 0.157in |
