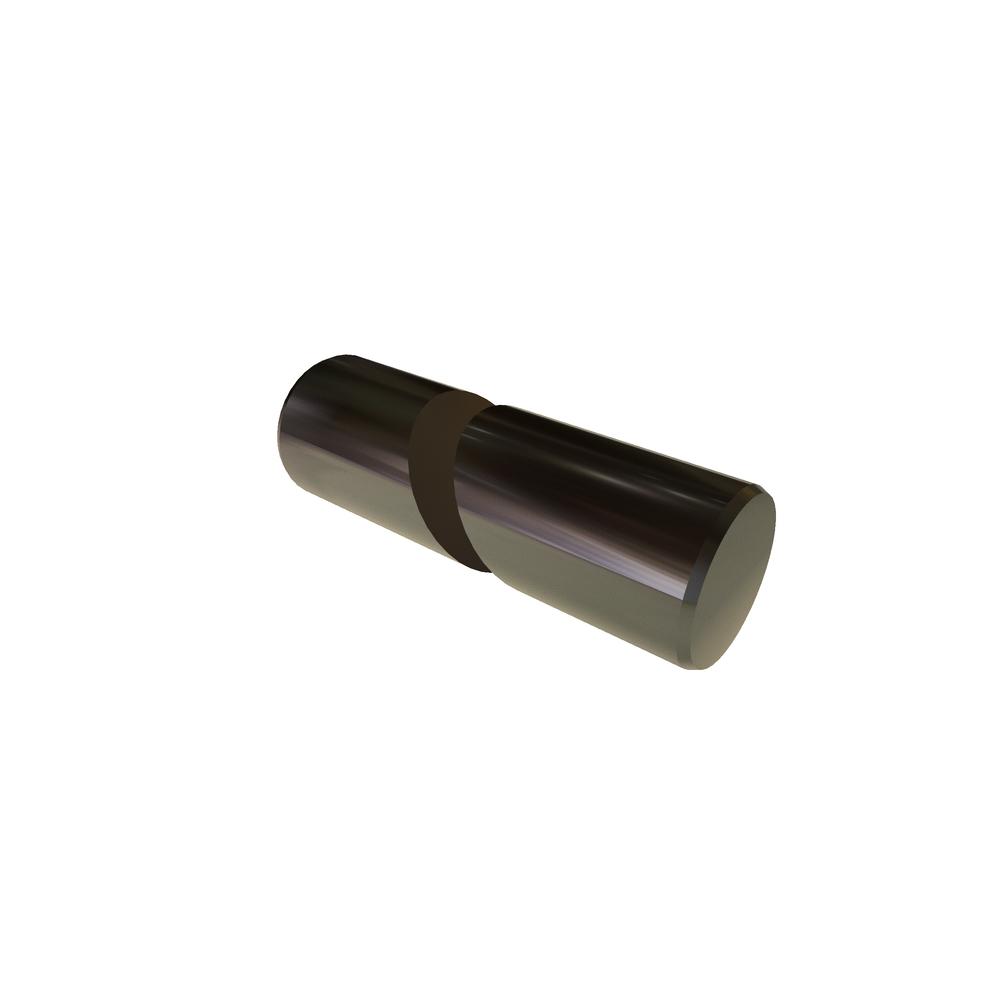

Image for reference purposes only. Actual product may vary.
12R50DOW4
1/8 X 1/2 DOWEL PIN 416 SST ROHS
Alternate Codes: 194735, D17-500, D17-500 PIC, D25-4, MS16555-627
1/8 X 1/2 DOWEL PIN 416 Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.141 | $0.726 | $0.666 | $0.614 | $0.518 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.1250in |
| Length | 0.5000in |
| Type | Press Fit |
| Brand | VARIED |
| Material | 416 Stainless Steel |
| Units | Inch |
| Corner radius | 0.016in |
| Pin Diameter (Min.) | 0.1251in |
| Pin Diameter (Max.) | 0.1253in |
| Additional Industry Cross Reference | 98380A471 |
| RoHS | Compliant |
| Heat Treat | Hardened |
