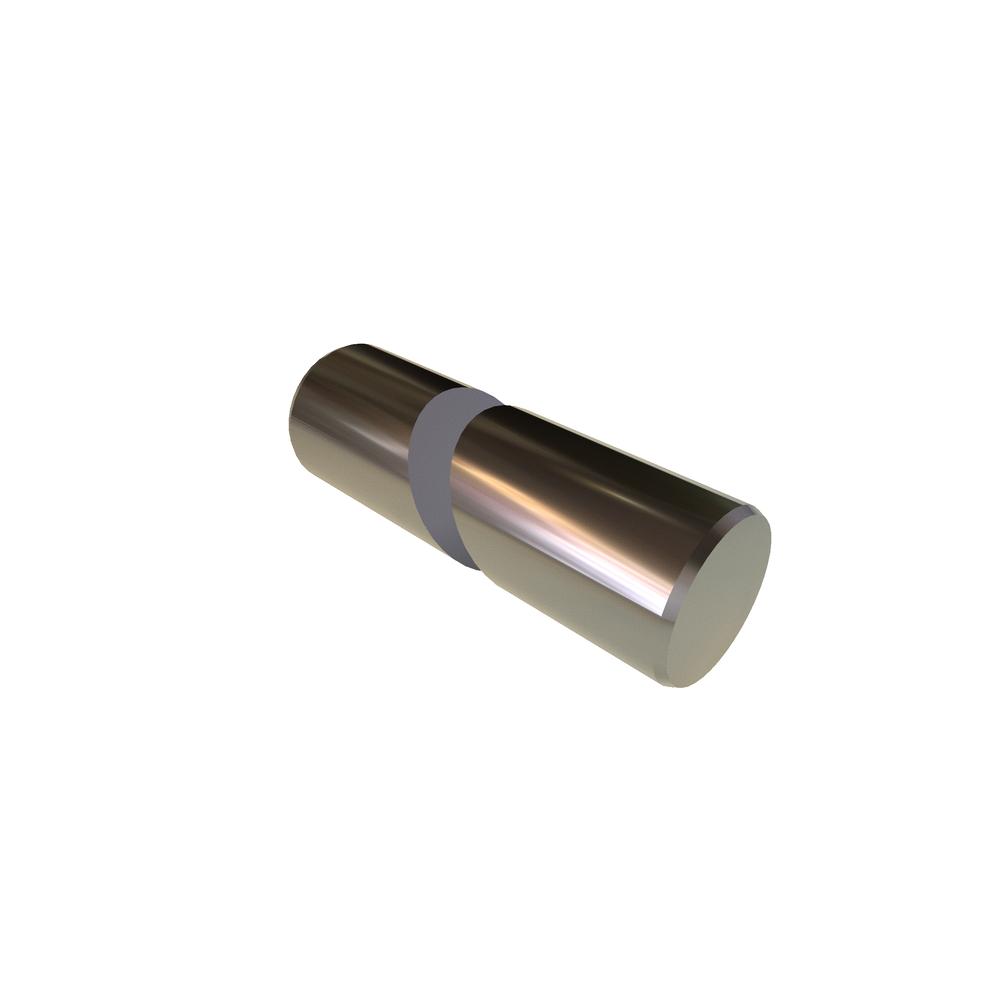

Image for reference purposes only. Actual product may vary.
18R75DOWS
3/16 X 3/4 DOWEL PIN SST RoHS
Alternate Codes: 98105A062
3/16 X 3/4 DOWEL PIN Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.980 | $0.624 | $0.573 | $0.528 | $0.446 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.1875in |
| Length | 0.7500in |
| Type | Press Fit |
| Brand | VARIED |
| Material | 300 Stainless Steel |
| Units | Inch |
| Pin Diameter (Min.) | 0.1876in |
| Pin Diameter (Max.) | 0.1878in |
| Chamfer Length (Min.) | 0.005in |
| Chamfer Length (Max.) | 0.025in |
| Additional Industry Cross Reference | 98105A062 90145A508 |
| RoHS | Compliant |
| Heat Treat | Unhardened |
