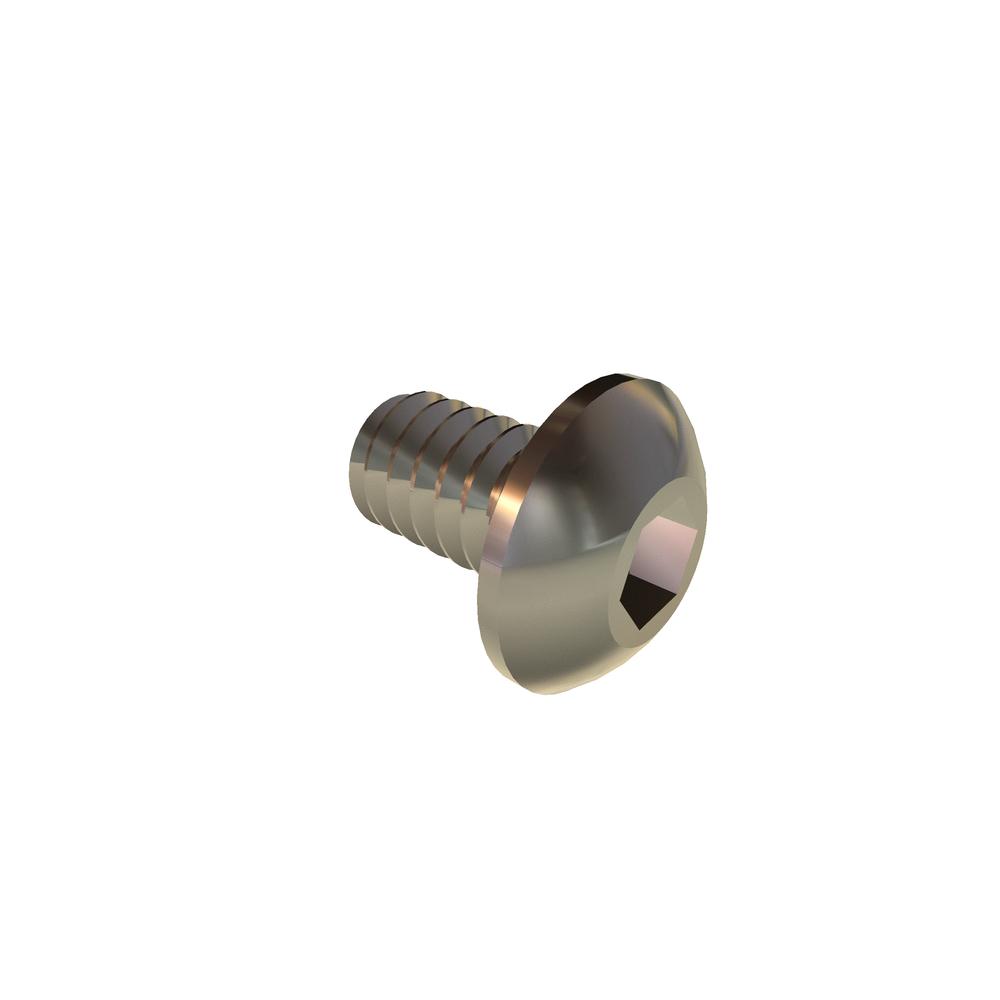

1C12BKCS
1-64 X 1/8 BUT SKT SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.567 | $0.312 | $0.260 | $0.223 | $0.184 | Larger Quantities |
In Stock
| Thread Size | 1-64 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.073in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.083in |
| Fillet Transition Diameter (Max.) | 0.093in |
| Head Side Height (Ref.) | 0.010in |
| Key Engagement | 0.028in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92949A314 |
| Length | 1/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.139in |
| Head Diameter (Min.) | 0.129in |
| Head Height (Max.) | 0.039in |
| Head Height (Min.) | 0.033in |
| Hex Socket Size | 0.050in |
