1F12PFHS

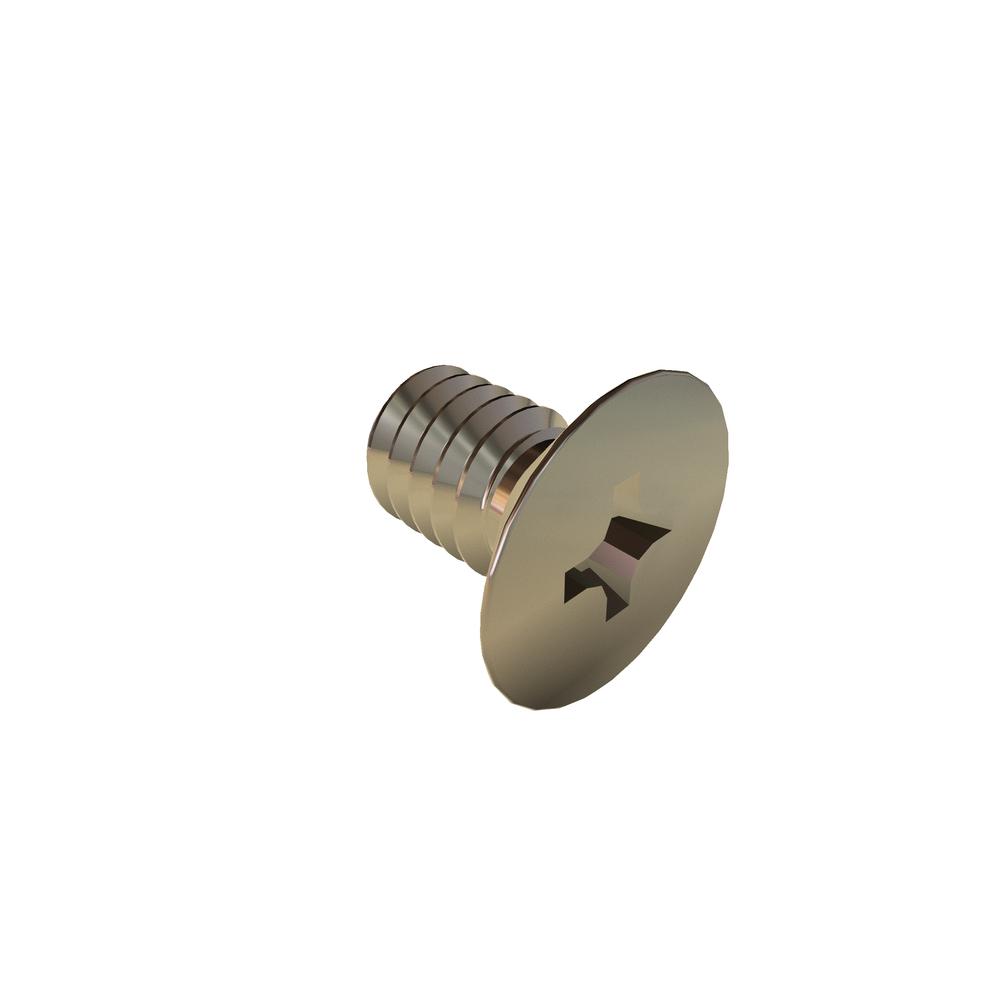

1-72 X 1/8 PHIL FLAT 100 DEG SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.898 | $0.494 | $0.411 | $0.353 | $0.291 | Larger Quantities |
In Stock
| Thread Size | 1-72 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Drive Type | Phillips |
| Recess Diameter | 0.062in |
| Nominal Thread Size | 0.073in |
| Head Height | 0.031in |
| Recess Depth (Min.) | 0.020in |
| Recess Depth (Max.) | 0.036in |
| Brand | VARIED |
| Type | Flat Head 100 Degree |
| Length | 0.12in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.137in |
| Head Diameter (Min.) | 0.118in |
