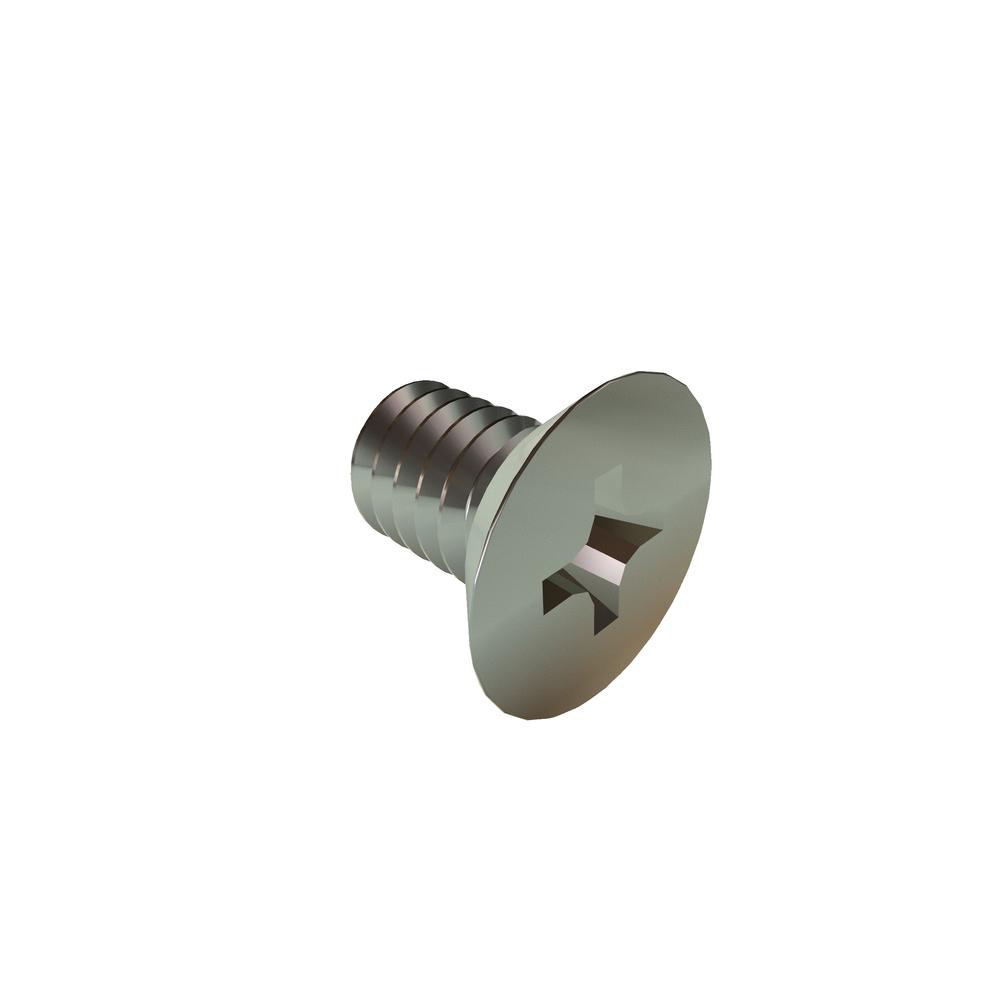

Image for reference purposes only. Actual product may vary.
1F12PFUS
1-72 X 1/8 PHIL FLAT U/C SST RoHS
Alternate Codes: 510-1602, 6000025-102, 91771A164
1-72 X 1/8 Phillips FLAT Head Undercut Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.229 | $0.120 | $0.095 | $0.088 | $0.074 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.12in |
| Thread Size | 1-72 |
| Finish | Plain |
| Material | Stainless Steel |
| Drive Type | Phillips |
| Head Height (Min.) | 0.023in |
| Head Height (Max.) | 0.031in |
| Recess Depth (Max.) | 0.044in |
| Additional Industry Cross Reference | 91771A164 |
| Recess Depth (Min.) | 0.028in |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.073in |
| Head Type | Flat Undercut |
| Recess Diameter | 0.070in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.137in |
| Head Diameter (Min.) | 0.120in |
