1F12PPMZB

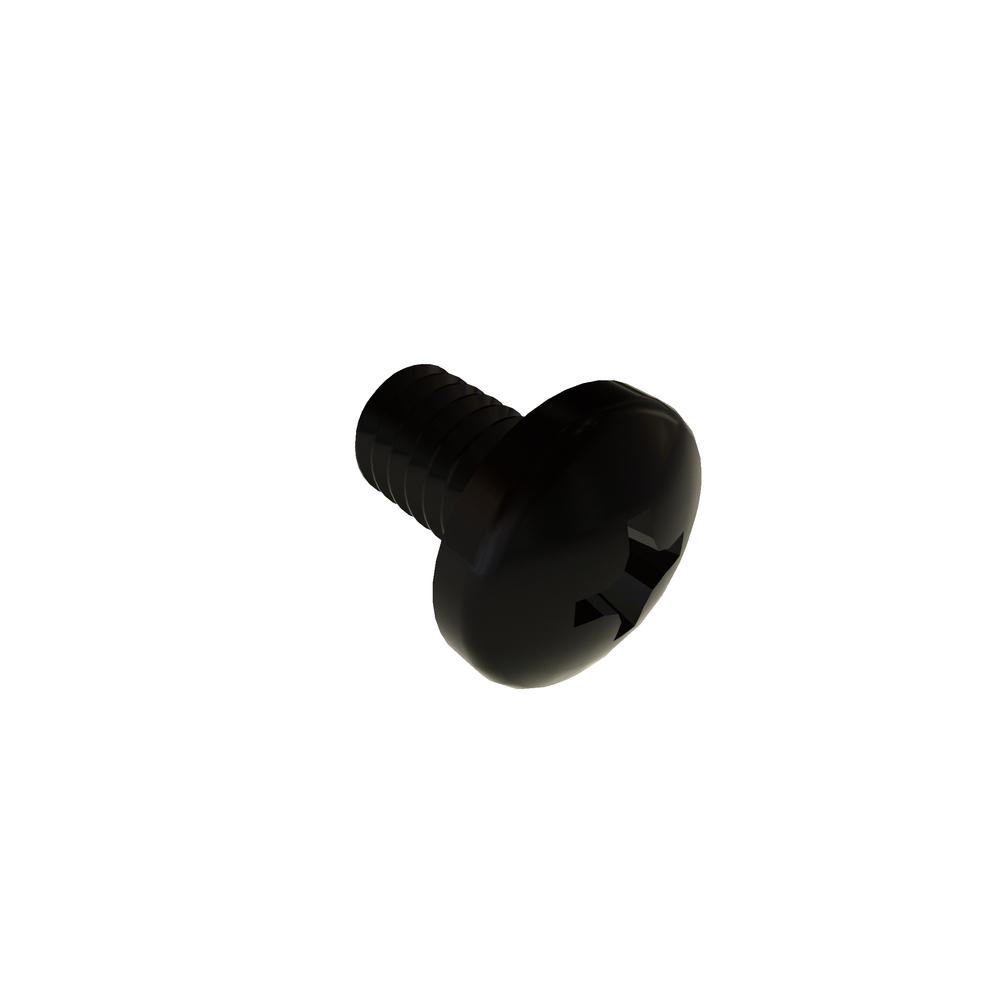

1-72 X 1/8 PH PAN STL BLK RoHS
Alternate Codes: 7200-5102
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1-72 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.073in |
| Head Type | Pan |
| Drive Type | Phillips |
| Recess Diameter | 0.067in |
| Head Radius (Min.) | 0.005in |
| Recess Depth (Min.) | 0.022in |
| Recess Depth (Max.) | 0.040in |
| Brand | VARIED |
| Length | 0.12in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.142in |
| Head Diameter (Min.) | 0.130in |
| Head Height (Max.) | 0.053in |
| Head Height (Min.) | 0.044in |
