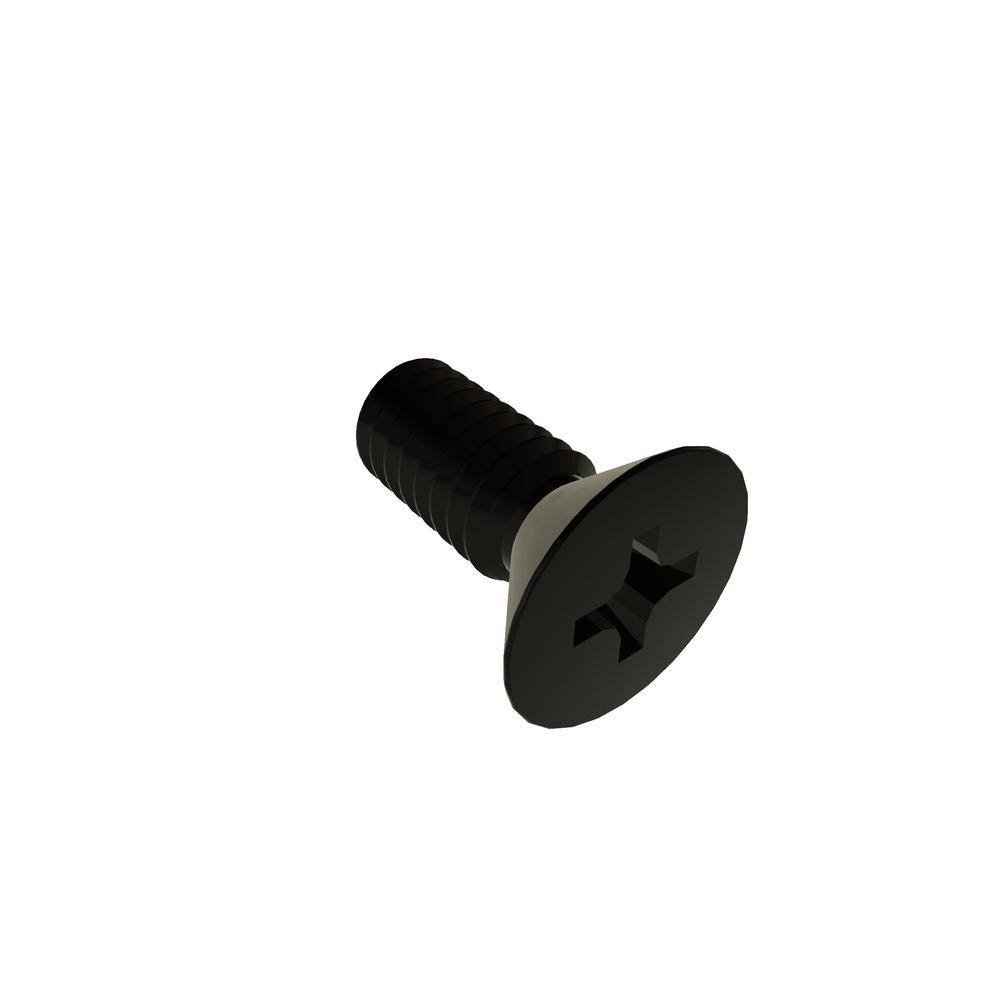

1F18PFMSB
1-72 X 3/16 PHIL FLAT SST RoHS BLK RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1-72 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.073in |
| Head Type | Flat |
| Drive Type | Phillips |
| Recess Diameter | 0.070in |
| Head Height | 0.043in |
| Recess Depth (Min.) | 0.028in |
| Recess Depth (Max.) | 0.044in |
| Brand | VARIED |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.137in |
| Head Diameter (Min.) | 0.120in |
