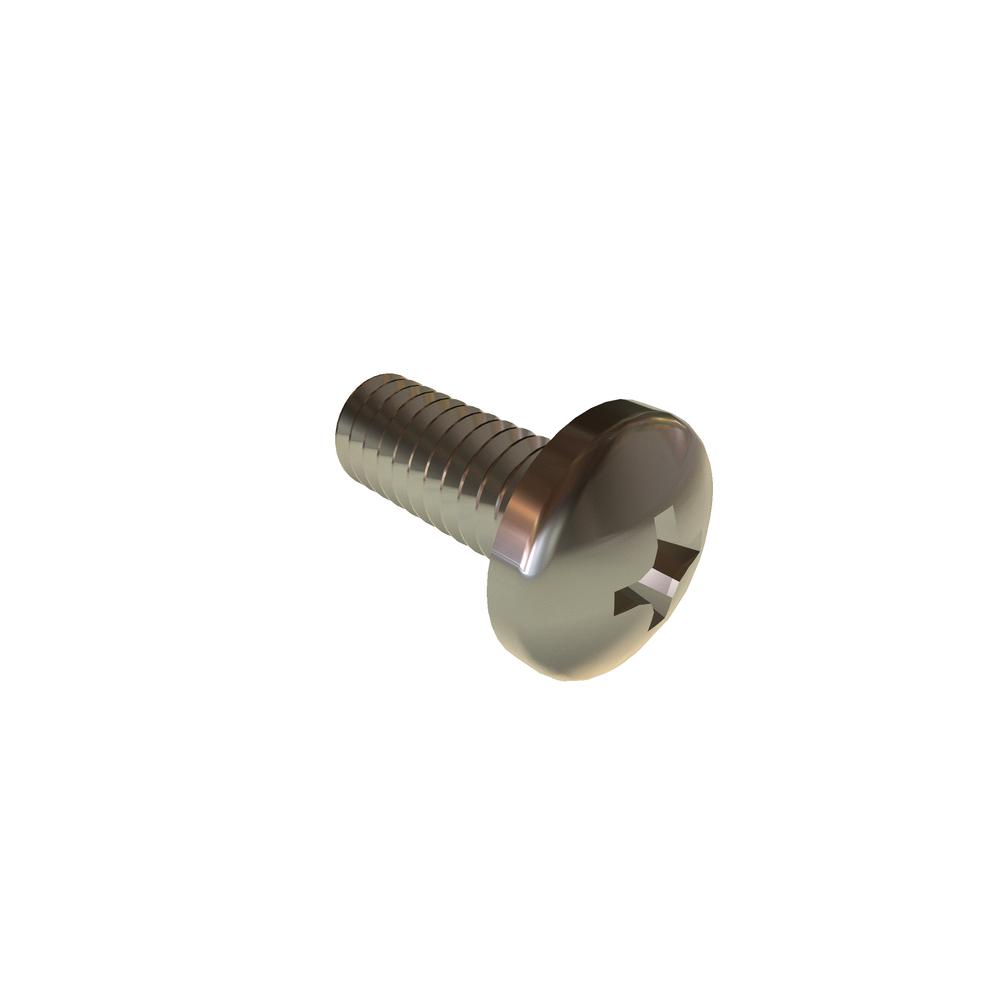

1F18PPMS
1-72 X 3/16 PH PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.224 | $0.135 | $0.112 | $0.092 | $0.081 | Larger Quantities |
In Stock
| Thread Size | 1-72 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.073in |
| Head Type | Pan |
| Drive Type | Phillips |
| Recess Diameter | 0.067in |
| Head Radius (Min.) | 0.005in |
| Recess Depth (Min.) | 0.022in |
| Recess Depth (Max.) | 0.040in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A065 |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.142in |
| Head Diameter (Min.) | 0.130in |
| Head Height (Max.) | 0.053in |
| Head Height (Min.) | 0.044in |
