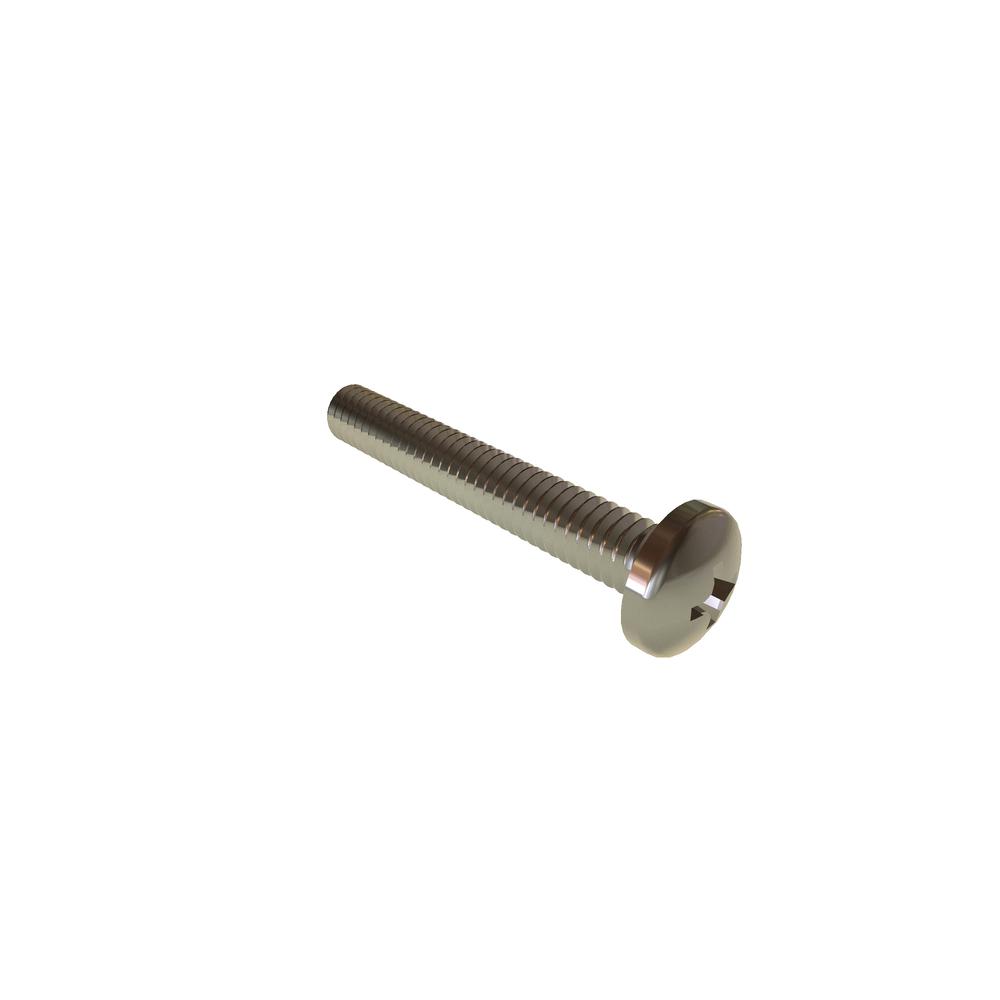

1F50PPMS
1-72 X 1/2 PH PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.296 | $0.156 | $0.123 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1-72 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.073in |
| Head Type | Pan |
| Drive Type | Phillips |
| Recess Diameter | 0.067in |
| Head Radius (Min.) | 0.005in |
| Recess Depth (Min.) | 0.022in |
| Recess Depth (Max.) | 0.040in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A070 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.142in |
| Head Diameter (Min.) | 0.130in |
| Head Height (Max.) | 0.053in |
| Head Height (Min.) | 0.044in |
