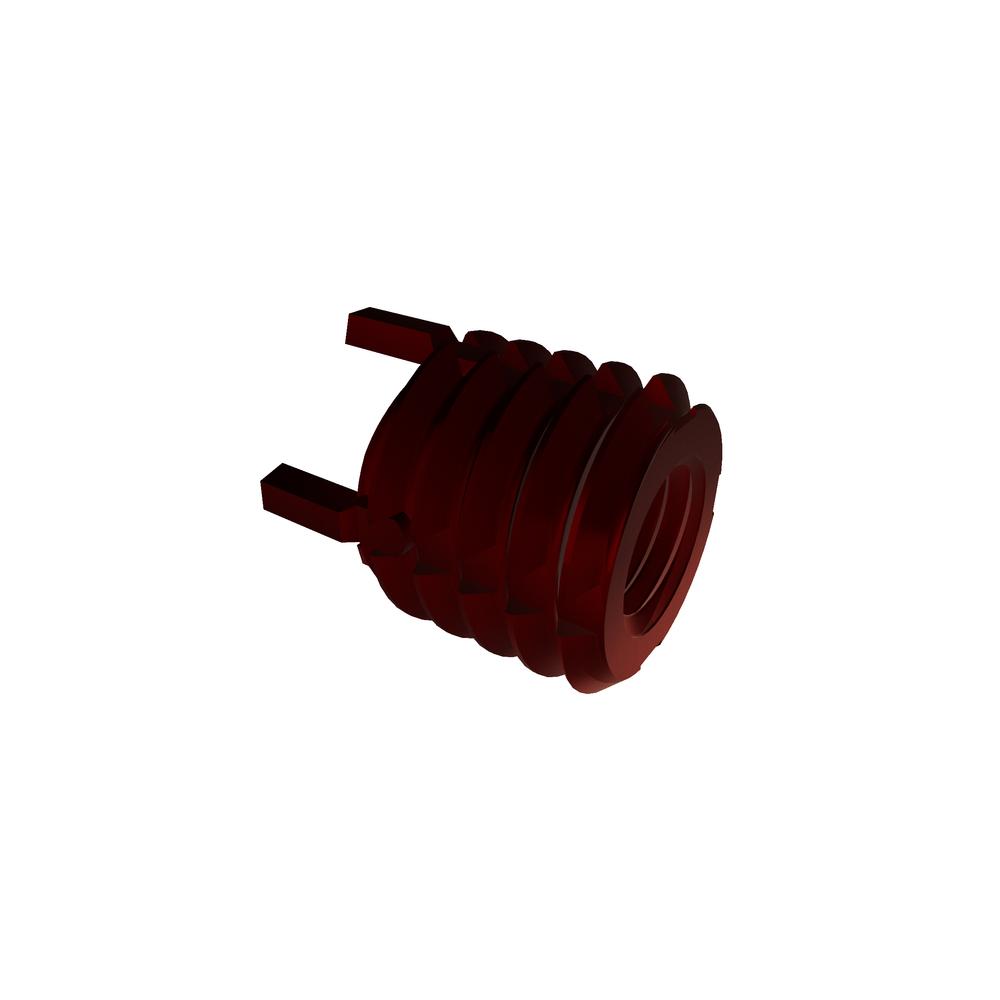

217-081502
1/4-28 X .375 KYLK INS 4140 ALLOY STL
Alternate Codes: 81502, KNHL428JMXSY, NAS1395-4L
ALLOY STL CAD PLT Non-RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-28 |
| Material | Alloy Steel |
| Units | Inch |
| Nominal Diameter | 0.250in |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | .397in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 11/32in |
| Minimum Installation Depth | 0.430in |
| Thread Tap Size | 7/16-14 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.438in |
| Internal Thread Nominal Diameter | 0.250in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.447in |
| External Thread | 7/16-14 |
