25C100EVBS

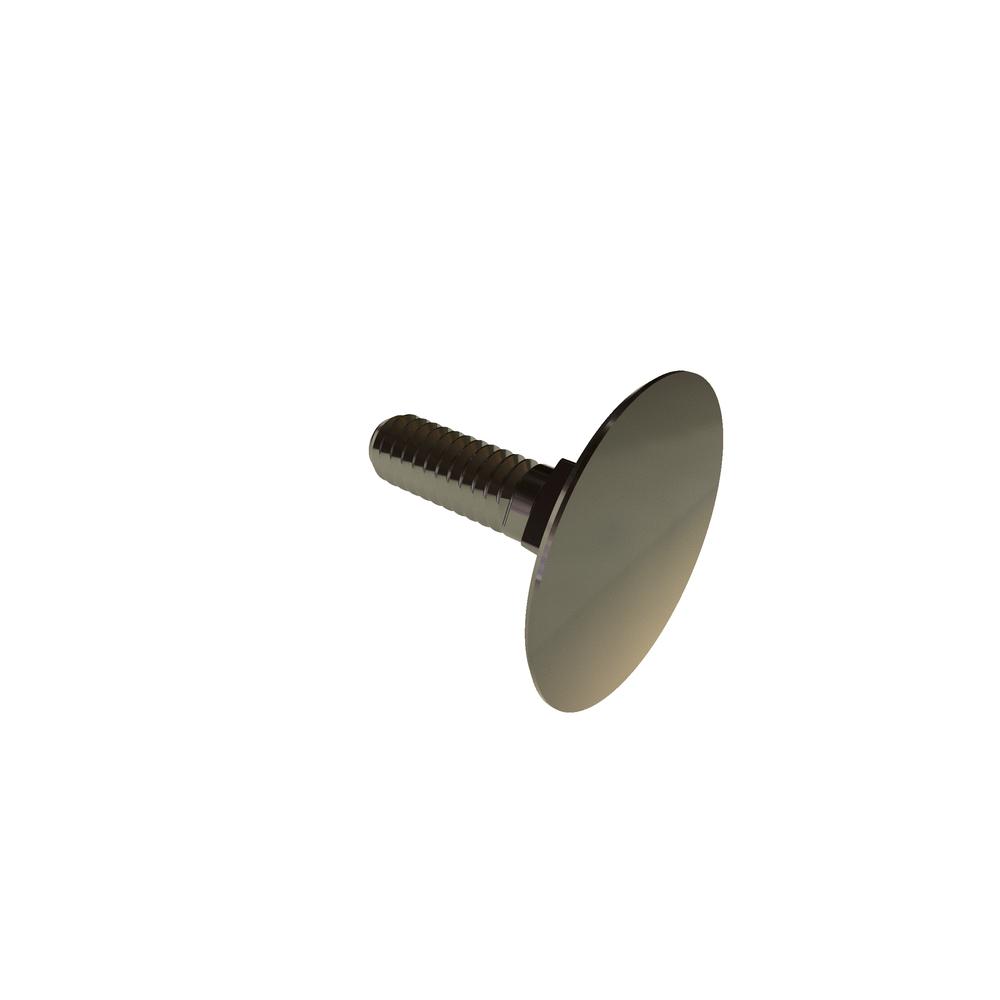

1/4-20 X 1 ELEVATOR BOLT SST RoHS
Alternate Codes: N/A
1/4-20 X 1 ELEVATOR BOLT Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-20 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Flat Countersunk |
| Body Diameter (Min.) | 0.237in |
| Grade | Other |
| Square Depth (Min.) | 0.188in |
| Square Depth (Max.) | 0.219in |
| Square Width (Min.) | 0.245in |
| Square Width (Max.) | 0.280in |
| Brand | VARIED |
| Type | Elevator Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.260in |
| Head Diameter (Max.) | 1.008in |
| Head Diameter (Min.) | 0.969in |
| Head Height (Max.) | 0.098in |
| Head Height (Min.) | 0.078in |
| Thread Length | 0.750in |
| Square Corner Height (Min.) | 0.228in |
