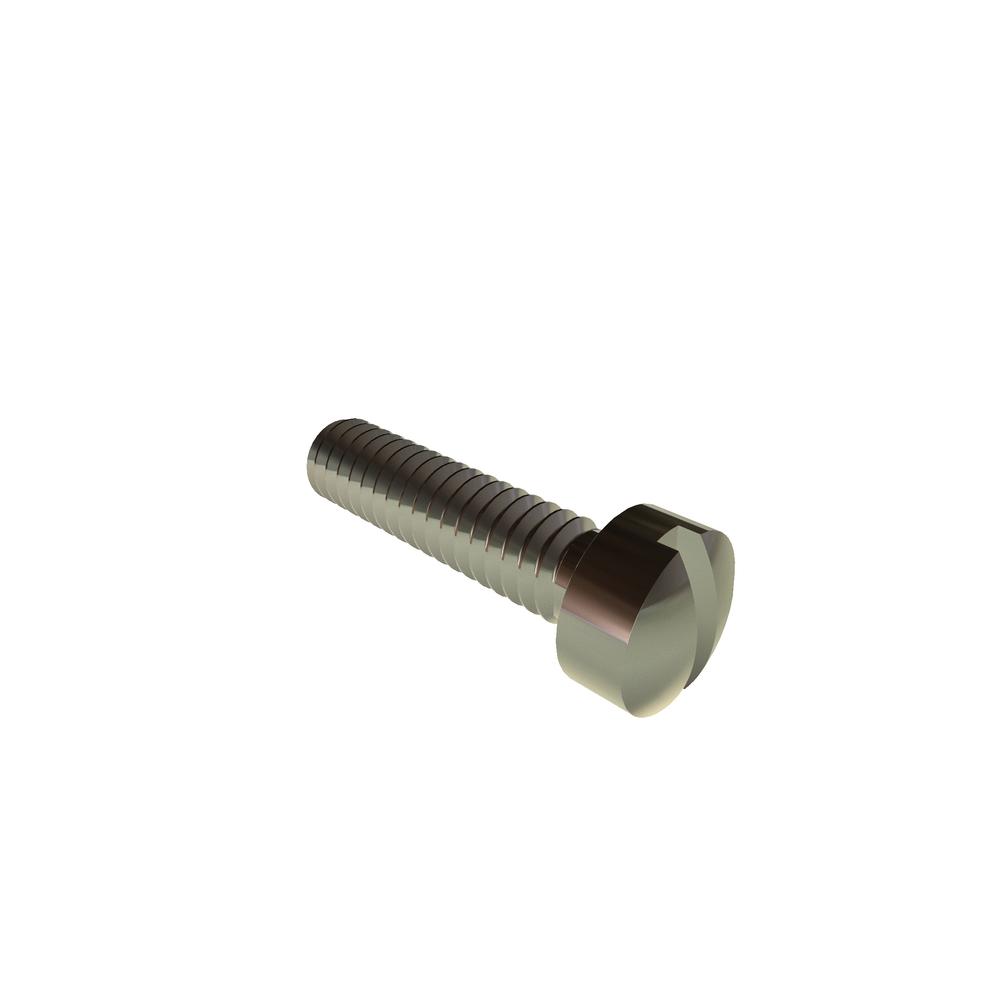

25C100SFIS
1/4-20 X 1 SLOT FILL SST RoHS
Alternate Codes: 91794A542
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/4-20 |
| Thread Size | 1/4/2020 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Head Type | Fillister |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.087in |
| Slot Depth (Max.) | 0.109in |
| Slot Width (Min.) | 0.064in |
| Slot Width (Max.) | 0.075in |
| Head Side Height (Min.) | 0.155in |
| Head Side Height (Max.) | 0.170in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91794A542 |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.414in |
| Head Diameter (Min.) | 0.389in |
| Head Height (Max.) | 0.237in |
| Head Height (Min.) | 0.207in |
